KPB1LE1-I8121462-R, microSYST MIPAN LED Digital Panel Multi-Function Meter for Profibus, 22.2mm x 93mm, Многофункциональный измеритель

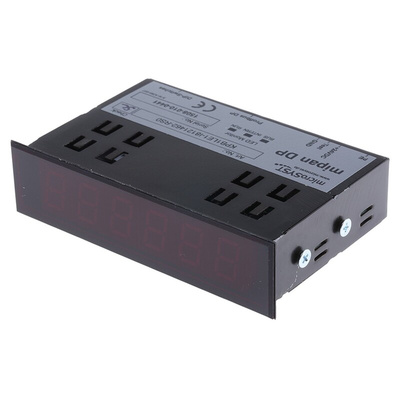

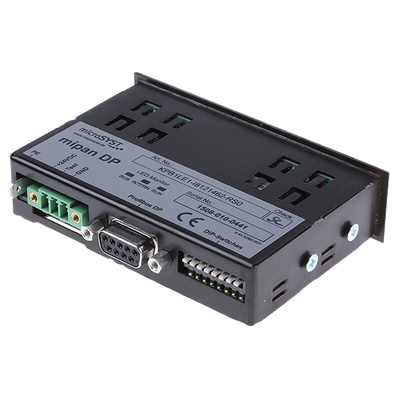

microSYST Numeric Data Display

The microSYST MIPAN series numeric data display is a compact 96mm x 24mm panel mount numeric unit. This LED data display is for industrial control system applications. It has cyclical data exchange with Profibus-DP master and 6-digit, 13mm, LED display.

Features and Benefits

Rugged metal case
High visibility 6 digit, 13 mm red LED display
Ideal as slave displays for PLCs and IPC based control systems
24VDC supply
Bus status LEDs and self-test function
Cut-out height of 22.2mm and width of 93mm and depth of 60mm
Operating temperature ranges between 0°C and 50°C

Certifications

IP65 rated front panel with supplied gasket
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

MIPAN-DP Numeric Profibus Data Displays Data Sheet
