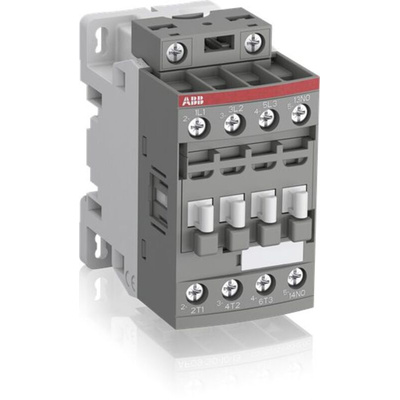

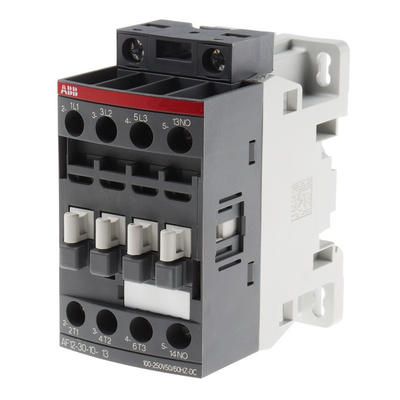

1SBL157001R1310 AF12-30-10-13, ABB AF Series Contactor, 230 V ac Coil, 3-Pole, 9 A, 5.5 kW, 3NO, 690 V ac, Контактор

ABB Contactor, Screw Termination, 270g Weight - AF Series - 1SBL157001R1310

Take charge of the electrical load in your industrial equipment with this contactor from ABB. A 3-pole configuration means you can regulate three phases simultaneously to give you multi-circuit control. As the unit features an in-built surge protector, it boosts safety by shielding your machinery from sudden spikes. Screw termination achieves a vibration-proof connection and simplifies wiring, making this a reliable option that's easy to install. The terminals are IP20-rated, meaning the contactor's touch-proof and protected against solid objects larger than 12.5mm.

Features & Benefits

• Weighs just 270g, so it's easy to handle during installation
• 6kV rated impulse withstand voltage for high protection against transient overvoltages
• Operating altitude of 3,000m for use in elevated settings
• Voltage rating of 690V to work with high-voltage systems

Applications

• HVAC systems
• Lighting rigs
• Electric motors
• Robotic equipment

How much vibration can this contactor put up with?

It withstands up to 2g of vibration in a closed system and 4g in an open system, making it suitable for heavy-duty industrial applications and environments where significant movement and mechanical disturbance are expected

AF09 ... AF38 3-pole Contactors Data Sheet

Panorama Motor protection and control Manual motor starters, contactors and overload relays

ABB Auxiliary Contacts Cross Reference List AF12 Range

Datasheet - 1SBL157001R1310
