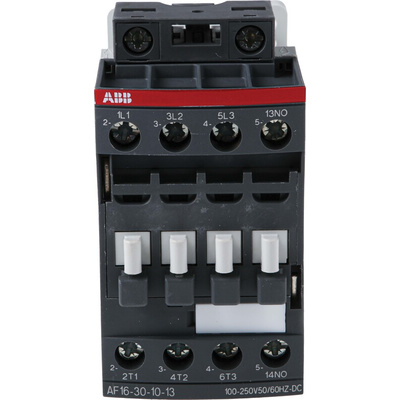

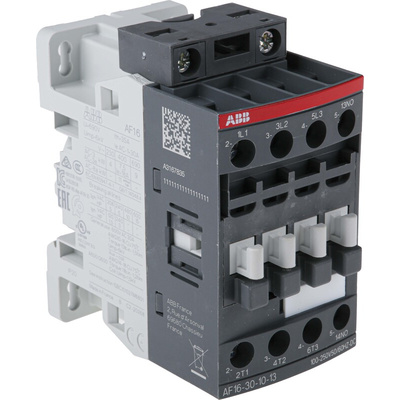

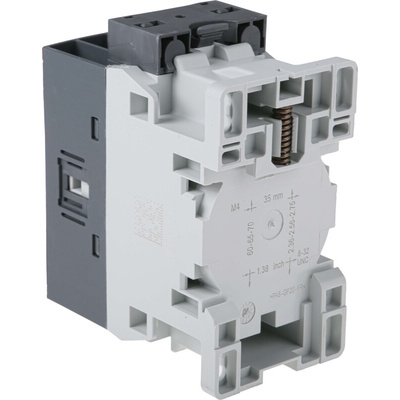

1SBL177001R1310 AF16-30-10-13, ABB AF Series Contactor, 230 V ac Coil, 3-Pole, 30 A, 7.5 kW, 3NO, 690 V ac, Контактор

ABB 3-Pole Contactor, 30A Current Rating, 690V Voltage Rating - AF16 Series - 1SBL177001R1310

For effective motor switching and control, choose this contactor from ABB. Because it's designed to trip when there's a current overload or short-circuit, it can serve as a safety device when used as part of a motor starter system. The unit features an integrated coil interface that handles a wide control voltage range of up to 690V, making it a versatile control solution. Thanks to a fully insulated thermoplastic housing, you can handle the contactor without the risk of electric shocks.

Features & Benefits

• DIN rail mounting is easy and tool-free
• Current rating of 30A for heavy-duty industrial applications
• Slim width of 45mm makes it suitable for installation in busy setups
• Modular design allows for the installation of additional contacts for increased capacity
• Light weight of 270g for easy handling and minimal strain on your system

Applications

• Escalators and lifts
• Process and packaging equipment
• Manufacturing facilities

What's the operating temperature range of this contactor?

This contactor has an operating temperature range of -40°C to +70°C, so it's suitable for use in harsh industrial conditions.

AF09 ... AF38 3-pole Contactors Data Sheet

Panorama Motor protection and control Manual motor starters, contactors and overload relays

ABB Auxiliary Contacts Cross Reference List AF16 Range

Datasheet - 1SBL177001R1310
