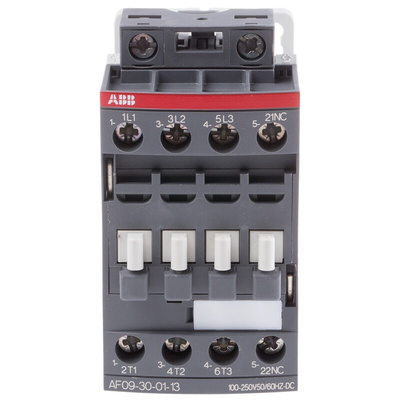

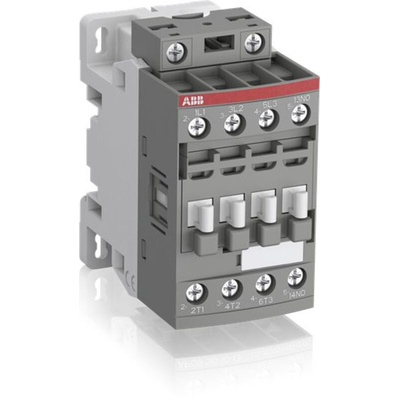

1SBL137001R1301 AF09-30-01-13, ABB AF Series Contactor, 230 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac, Контактор

ABB Contactor, 50/60Hz Rated Frequency, NEMA Size 00 - AF Series - 1SBL137001R1301 AF09-30-01-13

Get your motor running with this contactor from ABB. It has a wide control voltage range between 100 and 250V DC, so it's a versatile option. The unit also takes surges in its stride, thanks to built-in surge protection. A 3NO configuration allows for the control of three separate circuits, which stay off by default and only switch on when the contactor is energised. This enhances safety and system flexibility by ensuring circuits aren't active until you deliberately switch them on.

• Compact dimensions of 45 (W) x 77 (L) x 86mm (H) save space in your enclosure
• Mounts on a standard 35mm DIN rail for installation in a jiffy
• Broad operating temperature range between -40°C and +70°C for use in demanding settings

Applications

• Automotive industry
• Marine machinery
• Manufacturing facilities

What's the maximum electrical switching frequency of this component?

The contactor handles 1,200 cycles per hour, so it has the ability to rapidly switch circuits on and off. This makes it suitable for applications – like motors – that need frequent or high-speed switching.

AF09 ... AF38 3-pole Contactors Data Sheet

Operating Instructions

AF09-30 / AF09Z-30 Series Contactors Data Sheet

Panorama Motor protection and control Manual motor starters, contactors and overload relays

ABB Auxiliary Contacts Cross Reference List AF09 Range

Datasheet -1SBL137001R1301 AF09-30-01-13
