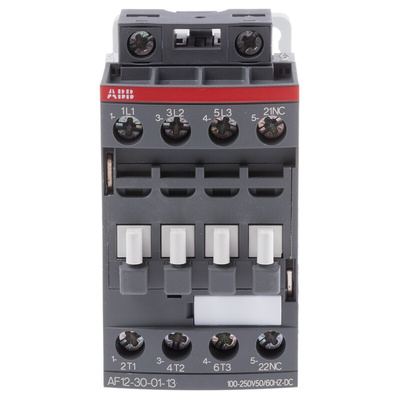

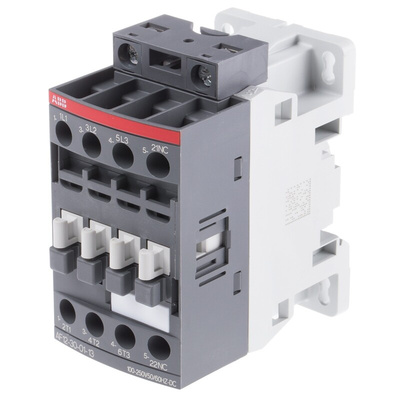

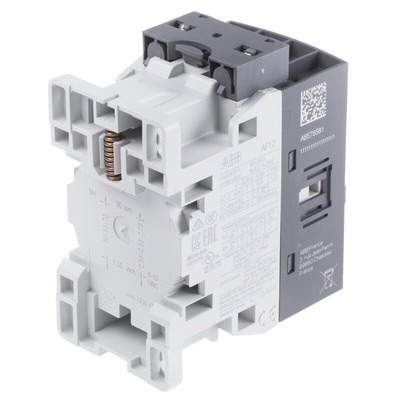

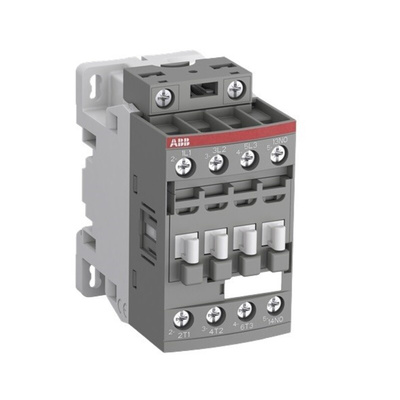

1SBL157001R1301 AF12-30-01-13, ABB AF Series Contactor, 230 V ac Coil, 3-Pole, 9 A, 5.5 kW, 3NO, 690 V ac, Контактор

ABB Contactor, 230V AC Voltage Rating, 3 Pole - AF Series - 1SBL157001R1301

Avoid damage to your machinery caused by electrical overload with this 3-pole contactor from ABB. It can be used to control power and monitor circuits in lighting installations, heating systems and motors. The block-type design has compact dimensions of 80 (L) x 45 (W) x 77mm (D) to save space in your existing setup. Installation is straightforward using the screw-type terminals, which maintain a secure connection even under vibration. There’s one auxiliary contact so you can move data to a logic controller or a control unit. For energy efficiency, this contactor has a normal state configuration of 3NO.

Features & Benefits

• Wide operating temperature range of -40°C to +70°C for use in demanding environments
• Power rating of 5.5kW for versatile use
• Contact current rating of 9A supports medium-power connections
• Coil voltage rating of 230V AC for stability

Applications

• Motor starters
• Industrial controls
• Alarm systems

What causes electrical overload?

Electrical overload can happen when there are too many devices plugged into one circuit. Safety contactors are used to alert users to overload before it can damage downstream equipment.

Does this contactor need additional surge suppressors?

No, this contactor has built-in surge protection, so you can be sure of its safety.

AF09 ... AF38 3-pole Contactors Data Sheet

Panorama Motor protection and control Manual motor starters, contactors and overload relays

ABB Auxiliary Contacts Cross Reference List AF12 Range

Datasheet - 1SBL157001R1301

Catalogue - Electrification Products
