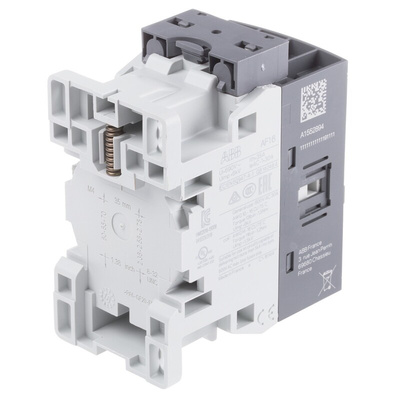

1SBL177201R1300 AF16-40-00-13, ABB AF Series Contactor, 230 V ac Coil, 4-Pole, 30 A, 7.5 kW, 4NO, 690 V ac, Контактор

ABB Contactor, AF Type, 690V AC Contact Voltage Rating - 1SBL177201R1300

Control circuits handling up to 30A power and motors up to 7.5kW with this contactor from ABB. It has built-in surge protection to prevent your circuits from overloading without the need for an auxiliary suppressor. You can use this unit with all systems regardless of your mains power supply standard, thanks to its wide control voltage range between 100 and 250V at 50/60Hz.

Features & Benefits

• Resistant to vibrations up to 300Hz to maintain a secure connection to motors
• Wide operating temperature between -40°C and +70°C for use in demanding settings
• Compact size of 45 (W) x 80 (L) x 77mm (H) for installation in densely packed systems

Applications

• Commercial lighting systems
• Manufacturing equipment
• Industrial machinery
• Electric motors

How do I mount this contactor?

You can mount this contactor on a DIN rail or to a flat surface with two M4 screws, so installation is quick and simple.

Can I customise this contactor?

This contactor is modular, so you can customise it to suit your needs by adding a front (237-4939) or side-mounting auxiliary contact (237-4938) and an interlock (711-6402) to your system.
