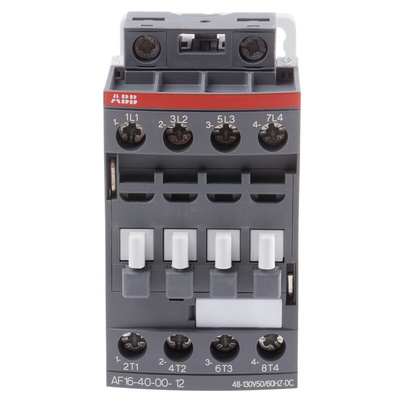

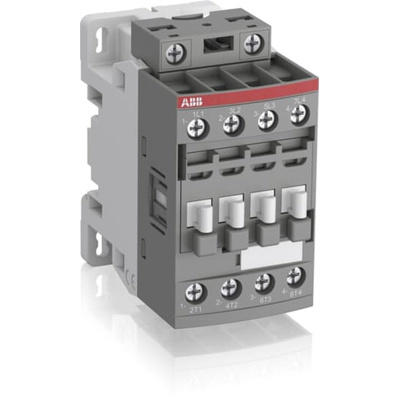

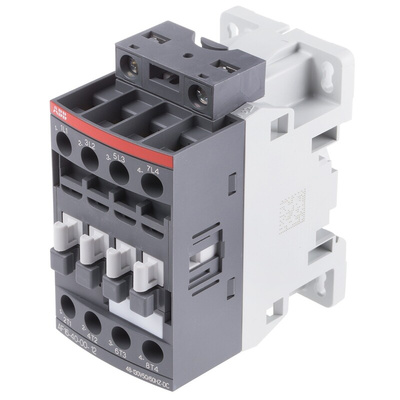

1SBL177201R1200 AF16-40-00-12, ABB AF Series Contactor, 110 V ac/dc Coil, 4-Pole, 30 A, 7.5 kW, 4NO, 690 V ac, Контактор

ABB AF Series Contactor, 4NO Configuration, 4 Pole - 1SBL177201R1200 AF16-40-00-12

The ABB contactor is a high-performance electrical component designed to provide reliable motor protection and control in various industrial applications. With a coil voltage of 110 VAC/DC, a contact current rating of 30 A, and a contact voltage rating of 690 V ac, this contactor ensures optimal performance and safety. The AF16-40-00-12 series offers advanced features to meet the demanding requirements of automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Reliable motor protection and control
• 4NO configuration for versatility in applications
• Screw terminal type for easy installation
• High power rating of 7.5kW for robust performance
• Wide operating temperature range from -40 °C to +70 °C
• Compact design for space-saving installation

Applications

• Used for motor control and power switching in industrial machinery
• Ideal for contactor and motor protection applications in automation systems
• Suitable for use in control panels, switchgear, and distribution boards

Can it withstand extreme temperatures?

Yes, the ABB contactor is designed to operate in a wide temperature range from -40 °C to +70 °C.

Will it fit in standard control panels?

Yes, the compact design of the contactor makes it suitable for installation in various control panels.

Is it easy to install?

With its screw terminal type, the contactor offers easy installation for seamless integration into electrical systems.
