1SBL137501R1200 AF09-22-00-12, ABB AF Series Contactor, 110 V ac/dc Coil, 4-Pole, 25 A, 4 kW, 2NO + 2NC, 690 V ac, Контактор

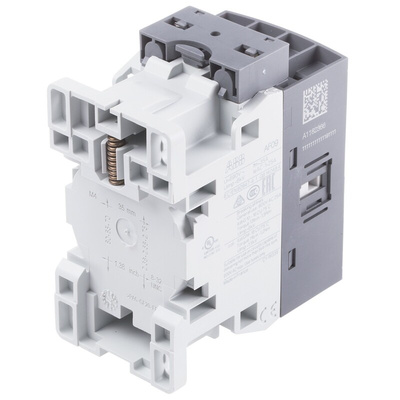

ABB AF Series Contactor, 2NO + 2NC Configuration, 4 Pole - 1SBL137501R1200

The ABB contactor is a versatile electrical component designed for automation, electronics, and mechanical industries. With a coil voltage of 110V and contact current rating of 25A, this contactor is ideal for a wide range of applications in various industries. The contact voltage rating of 690V AC ensures reliable and efficient operation. The AF09 series ensures high performance and durability, making it a top choice for professionals in the field.

Features & Benefits

• Coil voltage 110V AC/DC for versatile use in both systems
• Contact current rating 25A for efficient power management
• Contact voltage rating 690VAC for reliable operation in high voltage scenarios
• Power rating 4kW for robust performance
• Terminal type screw for easy installation and maintenance
• Normal state configuration 2NO and 2NC for flexible circuit control
• Number of poles 4 for expanded functionality and control options

Applications

• Used in automation systems for switching resistive circuits
• Ideal for controlling power circuits up to 690V AC and 440V DC
• Suitable for controlling non-inductive or slightly inductive loads
• Widely used in resistance furnaces and industrial machinery

Can the ABB contactor handle high voltage applications?

Yes, the ABB contactor has a contact voltage rating of 690V AC, making it suitable for high voltage applications.

Is the contactor easy to install?

The contactor features a screw terminal type, ensuring easy installation and maintenance for users.

What is the power rating of the ABB contactor?

The ABB contactor has a power rating of 4 kW, providing reliable performance for various applications.
