WRLM-5-S-D, Lorlin IP67 Key Switch, DPST, 4 A @ 250 V ac 2-Way, Выключатель с ключом

Lorlin Key Switch

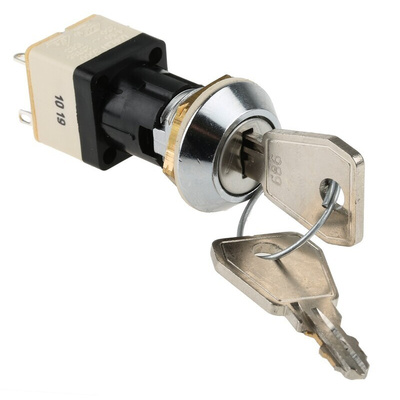

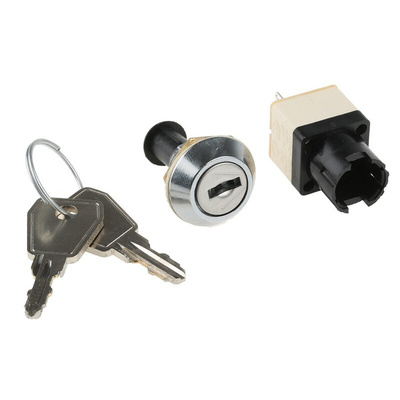

The Lorlin key switch has a double pole double throw(DPDT) OFF-ON contact configuration. It is high tech, miniature, key-operated lock switch. The key switch comes in a 2-part construction, a switch module and the key lock. The key lock can be fitted from the front of the panel and then the switch module can be snapped on from the rear.
It has a contact current rating of 4A at 250VAC.

Features and Benefits

Up to 200 key combinations are keys to differ
Common keys available keys to pass
Standard solder terminals (printed circuit terminals optional – add /P to part number).
For continued exterior use lubricate lock regularly
Snap on switch module
Number of positions are 2
Latching switch operation
Key trapping
Solder terminal
Case material is glass-fibre reinforced PA
Bezel shape is tapered
Depth behind panel is 40.85mm
Key index angle is 90°
Contact material is silver cadmium oxide
Mechanical life is 15,000 operations
Operating temperature range -25°C and 85°C

Applications

Control panels
Lighting controls

Certifications

EN61058
IP67 rated

Lorlin WRLM Series Datasheet
