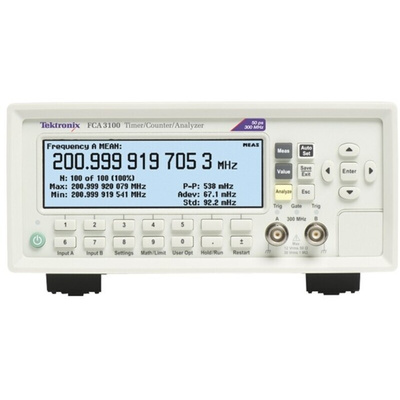

Tektronix FCA3100 Frequency Counter 300MHz UKAS Calibration, Частотомер

Tektronix FCA3000 & FCA3100 Timer/Counter/Analyzers

Tektronix timer/counter/analyzers offer performance and an abundance of features at an affordable price. With a graphical display and single button analyse key, users can instantly view their measurements with histograms, trend plots or a wide choice of statistics displayed simultaneously on the display, including Allan Deviation. There is the added benefit of multi-parameter measurements from one test connection, e.g., voltage measurements included with frequency. The instruments offer very high measurement speed and connectivity for an automated test system, including a convenient USB port. Measurements can be captured into internal memory at the rate of 250k/sec, or streaming block transfers through USB/GPIB up to 15k/sec.

Graphical, multi-parameter timer/counter display
High resolution down to 50 ps single shot (time)
Measurements to 12 digits/sec (frequency)
Fast USB/GPIB bus transfer speeds
Super fast measurements (250k/s) to internal memory
Zero-dead time frequency/period measurements
Built-in statistics & math functions including on screen histogram, trend plot or Allan Deviation
GPIB operates in either SCPI/GPIB or 53131A emulation mode, for plug-n-play replacement in existing ATE systems
Seamless PC connectivity through USB with NI SignalExpress™ Software

Note

Suitable for use with TVA3000 - TimeView™ Modulation Domain Analyzer 712-1151 and with HCTEK4321 hard carrying case 613-1510

Supplied with

Quick Start User Manual (English, Chinese, Japanese), multiple language documentation CD, NI LabVIEW SignalExpress™ TE (Basic) Edition software, trial version of TimeView™ Time Domain Analysis software, power cords, calibration certificate, UK & Euro plugs ( 712-1154 & 712-1157 )

Tektronix Frequency Counter

The Tektronix frequency counter is a 2 channel new generation, 300MHz totalize measurement device. This counter offers performance and an abundance of features at an affordable price. With a graphical display and single-button analyse key, users can instantly view their measurements with histograms, trend plots or a wide choice of statistics displayed simultaneously on the display, including Allan Deviation. There is an added benefit of multi-parameter measurements from one test connection like voltage measurements, included with frequency. This counter has a frequency resolution of 12digit/s and a time resolution of 50ps. This instrument offers very high measurement speed and connectivity for an automated test system, including a convenient USB port. Measurements can be captured into internal memory at the rate of 250k/sec or streaming block transfers through USB/GPIB up to 15k/sec. It has various advanced features for measuring frequency, period, ratio, time interval, time interval error, pulse width, rise/fall time, phase angle, duty cycle, maximum voltage, minimum voltage and peak-to-peak voltage.

Note
Suitable for use with TVA3000 - TimeView™ Modulation Domain Analyser 712-1151 and with HCTEK4321 hard carrying case 613-1510

Supplied with
Quick Start User Manual (English, Chinese, Japanese), multiple language documentation CD, NI LabVIEW Signal Express+I168™ TE (Basic) Edition software, the trial version of TimeView™ Time Domain Analysis software, power cords, calibration certificate, UK & Euro plugs ( 712-1154 & 712-1157 )

Features and Benefits

Graphical, multi-parameter timer/counter display
High resolution down to 50ps single shot (time)
Fast USB/GPIB bus transfer speeds
Super-fast measurements at 250k/s to internal memory
Zero-dead time frequency/period measurements
Built-in statistics & math functions including on screen histogram, trend plot or Allan Deviation
GPIB operates in either SCPI/GPIB or 53131A emulation mode, for plug-n-play replacement in existing ATE systems
Continuous data streaming over USB/GPIB bus during measurement
Seamless PC connectivity through USB with Signal Express software from National Instruments

Applications

Data communication
Embedded systems
RF and microwaves
Laboratories

Certifications

CE certified
EN61010-1
UL61010-1
CAN/CSA C22.2 No. 61010-1
EN61326-1
EN61326-2-1

Tektronix FCA3000 and FCA3100 Series Data Sheet
