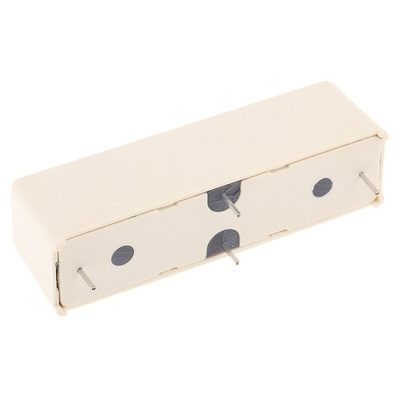

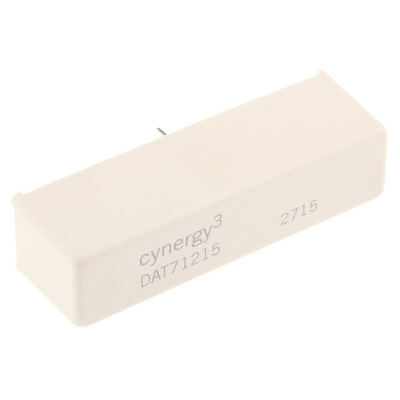

DAT71215, Sensata / Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 10000V dc Max, 2 A Max, 95Ω, Реле

Sensata Cynergy3 Reed Relay, 12V DC, SPNO - D Series - DAT71215

Need a reliable way to make and break electrical circuits in vital equipment? Use this reed relay from Sensata Cynergy3. The electromagnetic components are vacuum-sealed to prevent dust and dirt from affecting the switching performance. The contacts are made of tungsten, so they're resistant to high temperatures, wear and arcing. This makes the relay a good choice for test equipment, safety sensors and medical devices. Its isolation voltage of 15kV means it's suitable for use in high-power applications.

Features & Benefits

• Wide operating temperature range of -20°C to +70°C for use in demanding environments
• Through-hole terminals for simple and secure mounting
• Long electrical lifespan of 1,000,000,000 dry switching cycles for long-lasting performance

How responsive is this reed relay?

This reed relay has a fast operating time of 3ms, which includes the contact bounce. This quick switching ability makes it a highly responsive option for use in critical applications.

How large is this reed relay?

This reed relay has compact dimensions of 60 (length) x 15.8 (depth) x 18.5mm (height), making it suitable for use in areas where space is limited.

D Series HIGH VOLTAGE RELAYS 10KV & 15KV Datasheet

Information Sheet - S8-0504V/RS
