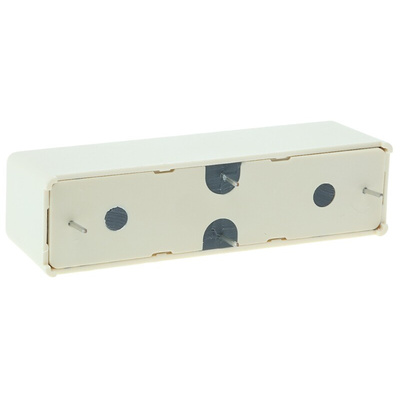

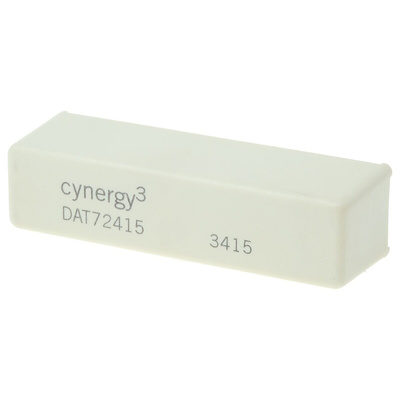

DAT72415, Sensata / Cynergy3 Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 10000V dc Max, 2 A Max, 350Ω, Реле

HV Vacuum Encapsulated D Series

These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality.

High power switching
Through hole PCB & panel mount or flying lead versions
15kV high isolation versions available
Tungsten contacts enable high voltage switching

Sensata Cynergy3 Reed Relay, 24V DC, 50W - DA(UL) Series - DAT72415

Electromagnetically control your high-voltage reed switch with this reed relay from Sensata Cynergy3. The relay's contact pins have a high current carrying capacity, so they can control the electromagnet in the reed switch and turn it on or off. As the contacts are made of tungsten, they're heat-resistant so you can easily solder them for a more secure connection. The relay has a maximum switching voltage of 10,000V AC/DC, making it a good choice for use in applications requiring a very high voltage. You can mount this relay onto a PCB (printed circuit board) on a range of devices, including a cardiac defibrillator, a Triac trigger or a power supply.

Features & Benefits

• Fast operating time of 3 milliseconds (including bounce) for a quick response
• One billion dry switching operational cycles for long-lasting use
• Compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height) for use in areas where space is limited

Can this reed relay withstand harsh temperatures?

Yes, this reed relay has a wide operating temperature range of -20°C to +70°C for use in demanding environments.
