DAT72415F, Sensata / Cynergy3 Sensata/Cynergy 3 PCB Mount Reed Relay, 24V dc Coil, SPST, 10000V dc Max, 2 A Max, 350Ω, Реле

HV Vacuum Encapsulated D Series

These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality.

High power switching
Through hole PCB & panel mount or flying lead versions
15kV high isolation versions available
Tungsten contacts enable high voltage switching

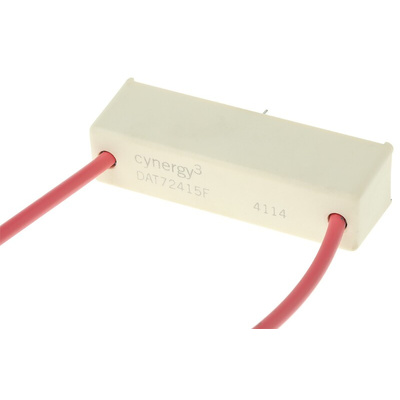

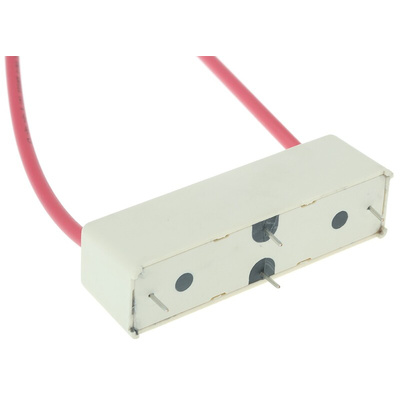

Sensata Cynergy3 High-Voltage Reed Relay, SPNO, 24 V DC - D Series - DAT72415F

Activate high-voltage transmission of up to 15 kV in your heavy-duty electrical equipment with this reed relay from Sensata Cynergy3. It consists of a reed switch with two contact relays that conduct high-voltage charges. Thanks to its exceptionally fast operating time of 3 milliseconds, you can use this reed relay for electrical devices that require quick and reliable charges. It's commonly used for applications such as semiconductors, test equipment and electrical-power transmission devices.

Features and Benefits

• Suitable for panel or PCB (printed circuit board) mounting for enhanced versatility
• Long service life of up to 100,000,000 electrical cycles
• Broad operating temperature range of -20°C to +70°C for use in a range of demanding environments
• Compact dimensions of 60 (length) x 15.8 (depth) x 18.5 mm (height) for use in tight spaces

What are the reed relay's contacts made of?

The contacts in this reed relay are made from tungsten, a refractory metal that's highly conductive and resistant to corrosion. These properties ensure efficient transmission and make the relay ideal for use in high-voltage applications.

D Series HIGH VOLTAGE RELAYS 10KV & 15KV Datasheet
