DAT71215F, Sensata / Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 10000V dc Max, 2 A Max, 95Ω, Реле

HV Vacuum Encapsulated D Series

These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality.

High power switching
Through hole PCB & panel mount or flying lead versions
15kV high isolation versions available
Tungsten contacts enable high voltage switching

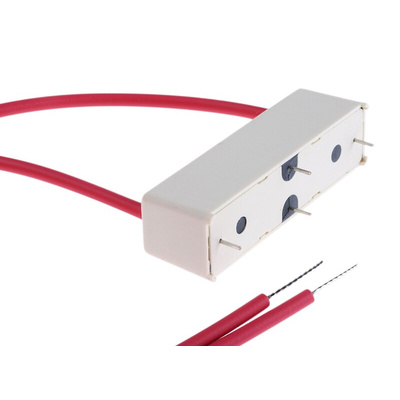

Sensata Cynergy3 Reed Relay, 12V DC, SPNO Configuration - D Series - DAT71215F

Need a control switch that can withstand high voltages? Use this reed relay from Sensata Cynergy3. It has a high maximum switching voltage of 10kV AC/DC for use in heavy-duty applications. The relay has tungsten contacts, which are highly conductive and resistant to corrosion for a reliable electrical connection. A fast switching time of 3ms ensures a rapid response for optimal performance. Thanks to its long electrical lifespan of one billion dry switching operations, it's a long-lasting and reliable component. It's commonly used in critical equipment such as alarm systems, test equipment and medical devices.

Features & Benefits

• Through-hole mounting for a simple and secure connection to a PCB
• Compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height) to maximise space on your PCB
• Wide operating temperature range between -20°C and +70°C for use in demanding environments

What are the main advantages of reed relays?

Reed relays work electromagnetically and only have a few moving parts, so there's minimal risk of mechanical wear. This means they'll last a long time and won't need frequent maintenance or repairs.

D Series HIGH VOLTAGE RELAYS 10KV & 15KV Datasheet
