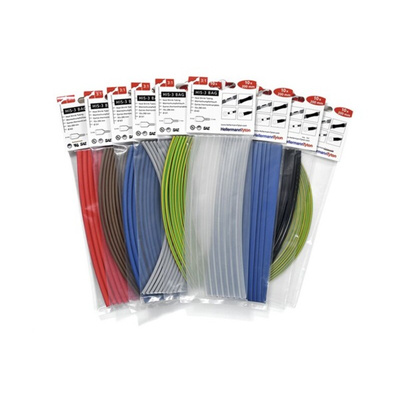

308-30616 HIS-3-BAG-6/2-PO-X-MIX, HellermannTyton Heat Shrink Tubing, Assorted 6mm Sleeve Dia. x 200mm Length 3:1 Ratio, HIS-3 BAG Series

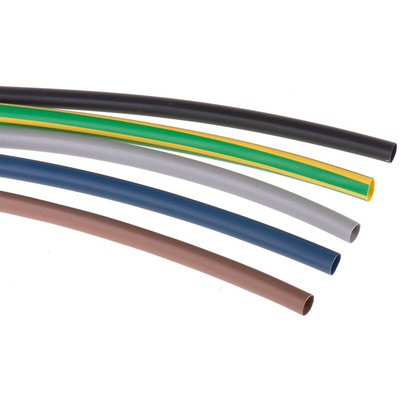

Heat Shrink Tubing HIS-3-Bag

The HIS-3 BAG series is a flexible thin wall heatshrink tubing made from polyolefin offering good cable protection and insulations and being an ideal solution for the electronics industry. It is a reliable electrical insulation and is ideal for cable joints and terminations.

Features and Benefits

• Usable for insulation
• Offer great protection of cables and harnesses
• Cross-linked polyolefin
• Heat shrink ratio 3:1
• Operating temperature of -55 to 135°C
• Flame retardant
• 10 pre-cut pieces per bag

Why should I use HIS-3 BAG Series Heat-Shrink Tubing?
The HIS-3 BAG series of heatshrink tubing offers convenience with pre-cut pieces in the bag and performance in having great protection for cables, good insulation and being flame retardant.

What does a heat shrink ratio of 3:1 mean?
A ratio of 3:1 means when the tube is heated it shrinks to a third of its original diameter.

How can I shrink the tubing?
A heat gun or a heat shrink oven are ideal ways to shrink your tubing. Before heating always check to ensure you know the correct heating temperature of your tubing.

Remember to ensure all health and safety precautions have been taken prior to using a heating devise.

Standards

SAE-AMS-DTL-23053/5, UL224 125°C 600V VW-1
MIL-DTL-23053/5 Class 1 & 3

HellermannTyton Heat Shrink Tubing, Polyolefin Material, 14MPa Tensile Strength - HIS-3 BAG Series - 308-30616 HIS-3-BAG-6/2-PO-X-MIX

Cable maintenance is quick and easy with this heat shrink tubing from HellermannTyton. It's manufactured from a flexible polyolefin thermoplastic that contracts when heated to form a tight-fitting protective layer around your components. With a hefty dielectric strength of 20kV/mm, it's a robust choice for re-insulating damaged cable jackets. As this high-performance material is resistant to acids, alkalis, oils and fuels, it also helps extend the life of your electrical leads in tough industrial environments.

Features & Benefits

• Supplied pre-cut for minimal preparation and immediate use
• Works reliably in extreme conditions thanks to an operating temperature range of -55°C to +135°C
• 3:1 shrink ratio is well-suited to covering irregularly shaped connections and terminations

Applications

• Vehicle repairs
• Electrical installation
• HVAC systems

What can I use to shrink this product?

The tubing's minimum shrink temperature of just +70°C means a heat gun or shrinking oven on low power will do the trick.

HIS-3-BAG: Heatshrinkable Tubing Data Sheet

Line Drawing - 308-30616 HIS-3-BAG-6/2-PO-X-MIX
