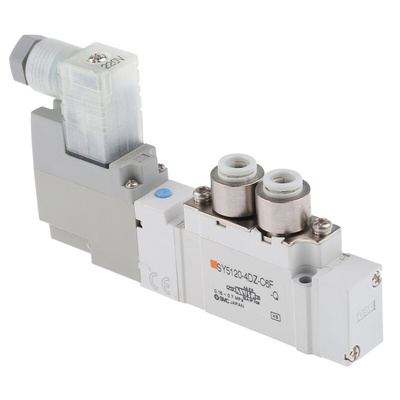

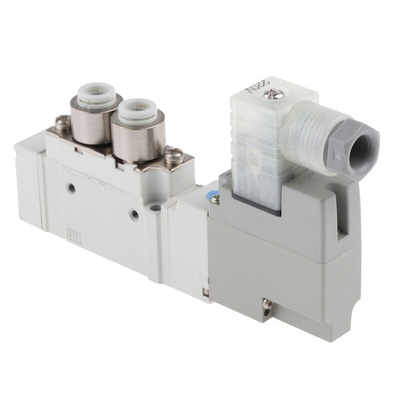

SY5120-4DZ-C6F-Q, SMC 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot SY5000 Series 230V ac, Клапан

SMC Solenoid Valve

The SMC SY5000 series 5/2 ports solenoid valve has a supply voltage of 220VAC. This valve has a 6mm G port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. The valve space-saving design means that it can be individually mounted onto sub plates or configured onto base mount manifolds. It has a pilot exhaust and a copper-free design. This valve can be used singly or with a manifold system. The low power consumption enables direct operation by PLC and it has a non-locking manual override. This valve is available with a DIN connector.

Features and Benefits

Solenoid power consumption is 1.6VA
Maximum flow rate is 500.5NL/min
Operating pressure ranges between 0.15MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C
Supplied with surge voltage suppressors

Certifications

IP65 rated
CE certified

5 Port Solenoid Valve SY Series Data Sheet
