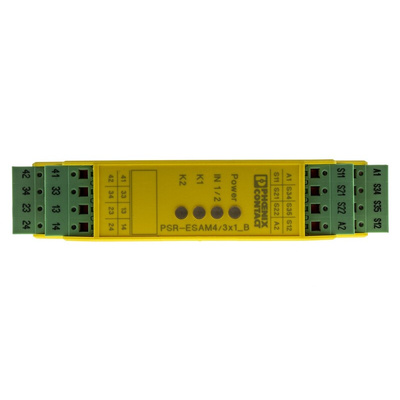

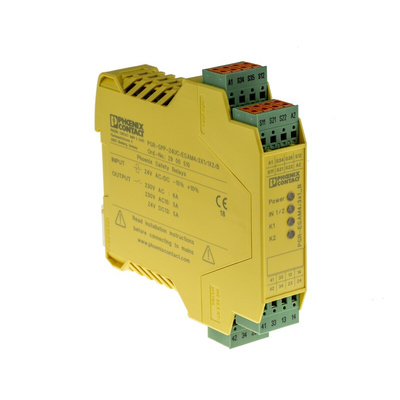

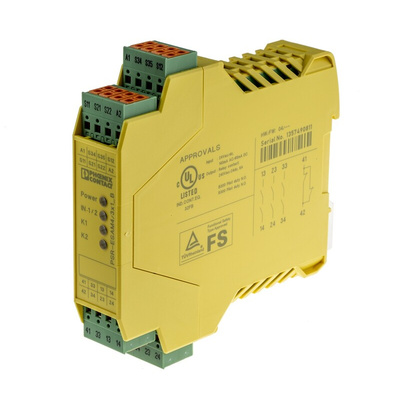

2900510, Phoenix Contact Dual-Channel Safety Switch/Interlock Safety Relay, 24V ac/dc, 3 Safety Contacts, Реле безопасности

Phoenix Contact Safety Relay, DIN Rail Mounting, 3 Enabling Current Paths - PSR-SPP- 24UC/ESAM4/3X1/1X2/B - 2900510

Looking for a reliable way to relay your commitment to workplace safety? Try this dual-channel interlock switch from Phoenix Contact. It protects workers from hazardous situations by immediately cutting power to dangerous equipment in an emergency. Because it meets EN/ISO 13850 Stop Category 0, you can be sure the device will trigger the shutdown command without a moment's delay. Use it to monitor machine guard doors, e-stops and two-stage enabling switches.
A green LED status indicator gives you at-a-glance confidence that this device is working as it should be. Connection is a breeze thanks to the spring cage method – simply strip and insert your wires and, in a matter of seconds, you've got physically and electrically secure contacts. Plus, an IP20 rating means you can be sure of protection against electric shocks if you accidentally touch the housing.

• Compact dimensions of 22.5 (W) x 112 (L) x 114.5mm (D) make it a comfortable fit for confined spaces
• Mechanical durability of 10 million cycles means you can expect a long service life
• Certified to PLe Category 4 and SIL 3, so it's suitable for the highest-risk industrial areas
• Operating temperature range between -20°C and +55°C for use in challenging environments

Datasheet

Manual - PSR Multifunction Safety Relays

Instruction Sheet - 2900510

Line Drawing - 2900510
