2986575, Phoenix Contact 24 V dc Safety Relay - With 3 Safety Contacts, Реле безопасности

PSR Safety Relays for the Process Industry

The PSR range of failsafe safety relays from Phoenix Contact are used as standard within process engineering.
The use of safe coupling relays for power adjustment and the electrical isolation of actuators is gaining in importance, as actuators often need more current or other voltages than the controllers are able to supply. The digital outputs of thecontrollers run automatic self-tests at regular intervals in order to detect faults. Regardless of this, the test pulses involved usually cause premature wear of the relays. With their integrated test pulse filter and control circuit to adjust power consumption, all FSP devices take these special requirements of a failsafe controller into account.

Features and Benefits

• Slim overall width means you can save space
• Fast installation and startup
• Force guided contacts make them a reliable choice
• Verified safety

Coupling relay - PSR-SCP- 24DC/FSP2/2X1/1X2

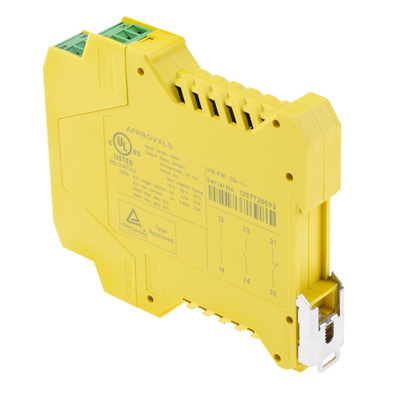

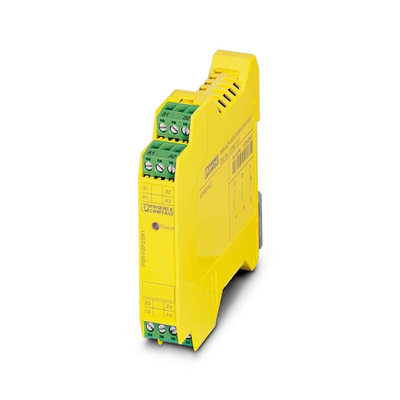

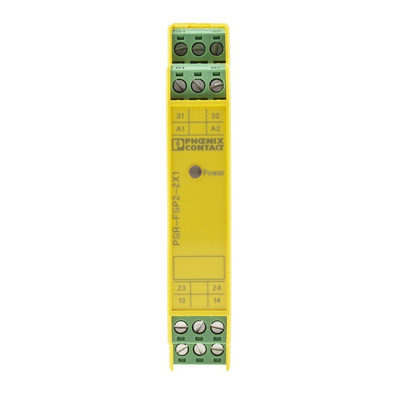

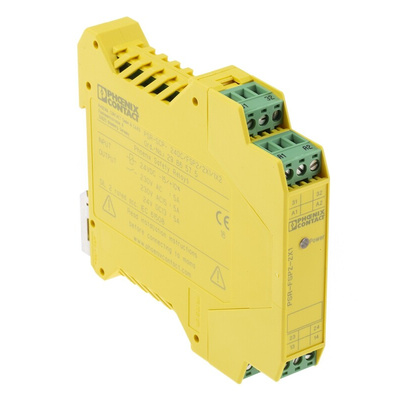

Phoenix Contact 2986575 is a PBT, DIN rail mounting, safety relay that meets up to safety integrity level (SIL) 2 high and low demand applications. The safety relay has a long safety life thanks to the filtering of controller test pulses.

Features and Benefits

• Screw connection
• Width of 17.5mm
• Couples digital output signals to the I/O devices such as valves
• 2 enabling current paths
• 1 alarm contact

Approvals

EN 50156, EN ISO 13849

Standards

DIN EN 50178/VDE 0160

Datasheet 2986575

Safety Characteristics
