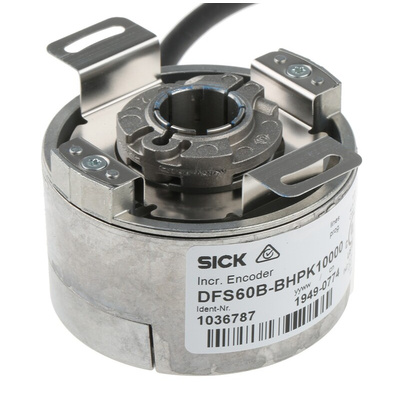

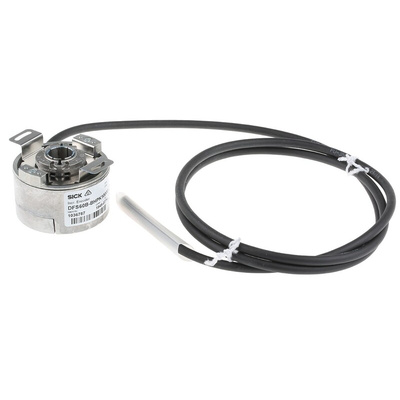

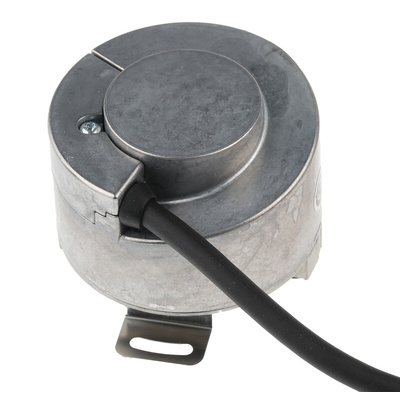

DFS60B-BHPK10000, Sick Incremental Incremental Encoder, 10000 ppr, HTL, TTL Signal, Hollow Type, 15mm Shaft, Энкодер

Blind Hollow - 15mm Shaft

Note

*Shaft diameter may be reduced to 12mm, 10mm, 8mm by use of collet (typical stock no. 492-9286)

SICK STEGMANN High-resolution Incremental Encoders

The DFS60 programmable incremental encoders can be programmed to produce any ppr from 1 to 10000. In addition , the output signals are software selectable: TTL/RS422 or HTL/Push-pull, making the DFS60 a truly universal incremental encoder. The programming tool consists of a USB lead and Windows XP/Vista/7 compatible software, designed for ease of use, enabling on site programming in seconds.

Any PPR can be programmed from 1 - 10000
Programmable output levels TTL (RS422) or HTL (Push-pull)
Solid shaft or hollow shaft design
Electronic adjustment of zero pulse width and position
Sealed to IP65
Highly robust due to metal code disc
Wide temperature range -30 → +100 °C
A flexible, reliable encoder for multi-purpose use
