EOS Switching Power Supply, LFWLT150-1003-2, 24V dc, 6.25A, 150W, 1 Output, 120 → 390 V dc, 90 → 264 V ac, Источник питания

150W Convection Universal Input, 2x4inch WLT150 Series

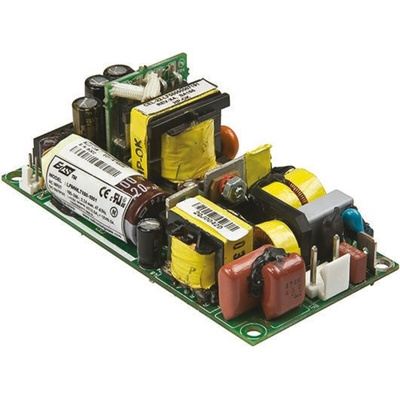

The 150W open frame convection power supply has universal input and is a compact 2x4 inch in size. Suitable applications include industrial, data networking, telecommunications, process controls and automation products. Class 1 and Class 2 versions available.

150 W with forced air cooling
Compact 2 x 4 inch package
High efficiency: > 86%
Low conducted and radiated noise
EMC meets EN5022 class B, FCC part 15 Class B
Harmonic correction to EN61000-3-2 Class D
Overvoltage, power limit, and short circuit protection
Free air convection for 100 W (5V = 80 W), and 150 W (5V = 100 W) with 300LFM airflow
Screw terminals
Lightweight, 150g
Optional cover available, see stock number 666-7674

Note

Class 2 versions have part numbers suffixed by '-2', others are all Class 1
MTBF to Bellcore TR-322.
Derate above 51°C to 70° linearly to 50% load
Output current and power rating stated for free air convection.

Standards

UL / IEC/ EN60950

Approvals

UL, c-UL, IEC

WLT150 Series 150 Watt 2 x 4 Inch AC/DC Power Supplies Data Sheet
