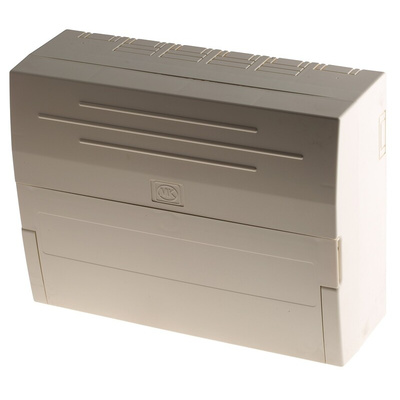

MK Electric 14 Way Split Load Plastic Consumer Unit, 63A, IP3X K7663SP, Распределительная коробка

Fully Populated Consumer Unit

MK Sentry introduce a new range of Populated Consumer Units. There are 3 new insulated surface mounted additions that come supplied pre fitted with switch Disconnector, RCDs, devices and necessary cabling. The populated units allow flexibility for protected and unprotected MCB or RCBO ways.

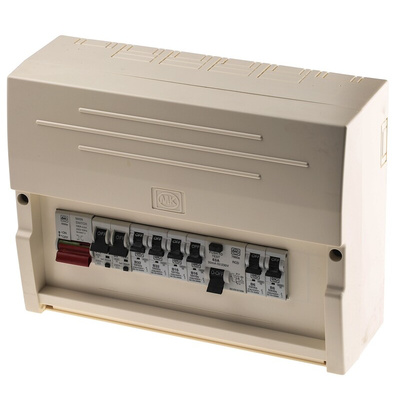

14 and 16 way flexible dual RCD Consumer Unit
Pre assembled with 100A switch, 2x63A RCDs & 6 MCBs (1x40A, 2x6A, 1x16A, 2x32A)
Insulated, surface mounted
Low profile design

Supplied with

712-7373 - 100A switch disconnector, 2 RCDs (63A), 10 MCBs (1x40A, 3x6A, 2x16A, 4x32A)
712-7379 - 100A switch disconnector, 3 RCDs (2x63A, 1x30mA), 6 MCBs (1x40A, 2x6A, 1x16A, 2x32A)
712-7382 - 100A switch disconnector, 1 RCD (63A), 6 MCBs, 2 RCBOs (14 MOD)

MK Series Enclosures & Accessories

The Sentry™ range of consumer unit enclosures from MK provides a flexible solution for residential, commercial and light industrial applications, where circuit protection is required. The modular design allows flexibility of configuration, ranging from simple MCB arrangements to more complex split loads.

Curved lines, low profile apperance and colour let the unit blend with its environment
Flush mounting available for neater installations
Opaque and downward opening lid conceals protective devices and unsightly labelling
Floating busbar systems gives maximum installation flexibility
Stacking options for larger installations
