Keysight Technologies 53210A Frequency Counter, 0 Hz Min, 350MHz Max, 10 Digit Resolution - RS Calibration, Частотомер

Keysight 350 MHz Counters

Keysight 53200A Series is a new generation of 350 MHz RF and Universal counter/timers delivering exceptional performance and usability standards. These are the first frequency counters with LXI-C compliance. Their high speed measurements and built-in analysis provide functionality not previously available in basic frequency counters/timers. The 53200A models offer resolution capabilities up to 10 digits/second frequency ( 53210A 713-4286 ) or 12 digits/second frequency ( 100ps 53220A 713-4295 , 20ps 53230A 713-4298 ). All models offer built-in analysing and graphing capabilities to maximise insight and information delivered.

• Optional 6 GHz or 15 GHz Input
• Single-shot resolution 20ps models
• 1M reading memory & datalogging
• LXI-C, LAN, USB, GPIB Large color graphical display: Math, statistics, histogram, trend/stripchart, datalogging
• 1MSa continuous/gap-free measurement and timestamp capability (53230A)
• Optional pulse microwave measurements (53230A) and battery

Approvals

Cat 1 (300 V), EN61010, NRTL certified, EN55011, 61326-1

Supplied with

certificate of calibration, IEC power cord, USB cable, CD including programming examples, programmer's reference help file, user's guide, quick start tutorial, service guide, Keysight IO Library CD

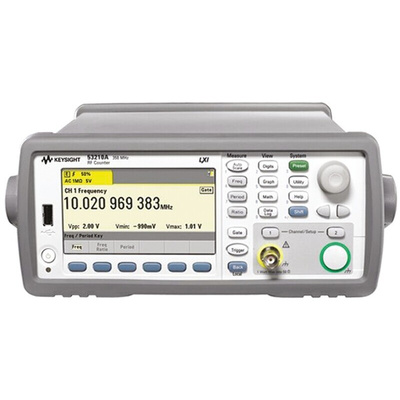

Keysight Technologies Frequency Counter, BNC Connector, 1mHz to 350MHz Frequency Range - 53200A Series - 53210A

Need to accurately measure the frequency of a signal and analyse the results? Use this frequency counter from Keysight Technologies. It's part of the 53200A Series, a new generation of counters featuring built-in analytic and graphic capabilities. An intuitive interface allows you to access the most commonly used counter controls for ease of use. With just a few clicks, you can log data and export it to MATLAB, Excel or Word for convenient documentation and analysis. The Test Flow function allows you to rapidly develop custom test procedures, while Command Expert integration offers enhanced instrument controls.

Features & Benefits

• Reading capability of up to 10 digits per second for high-speed measurements
• Wide operating temperature range of 0°C to +55°C for use in demanding environments
• Broad frequency range of 1mHz to 350MHz for versatility

Applications

• Testing laboratory equipment
• Production lines
• Telecommunications

What kind of signal can I measure with a frequency counter?

For versatility, you can measure different kinds of signals using a frequency counter, including digital logic signals, RF signals and microwaves.

Datasheet - 53200A Series
