Keysight Technologies 53230A Frequency Counter, 0 Hz Min, 350MHz Max, 12 Digit Resolution - RS Calibration, Частотомер

Keysight 350 MHz Counters

Keysight 53200A Series is a new generation of 350 MHz RF and Universal counter/timers delivering exceptional performance and usability standards. These are the first frequency counters with LXI-C compliance. Their high speed measurements and built-in analysis provide functionality not previously available in basic frequency counters/timers. The 53200A models offer resolution capabilities up to 10 digits/second frequency ( 53210A 713-4286 ) or 12 digits/second frequency ( 100ps 53220A 713-4295 , 20ps 53230A 713-4298 ). All models offer built-in analysing and graphing capabilities to maximise insight and information delivered.

• Optional 6 GHz or 15 GHz Input
• Single-shot resolution 20ps models
• 1M reading memory & datalogging
• LXI-C, LAN, USB, GPIB Large color graphical display: Math, statistics, histogram, trend/stripchart, datalogging
• 1MSa continuous/gap-free measurement and timestamp capability (53230A)
• Optional pulse microwave measurements (53230A) and battery

Approvals

Cat 1 (300 V), EN61010, NRTL certified, EN55011, 61326-1

Supplied with

certificate of calibration, IEC power cord, USB cable, CD including programming examples, programmer's reference help file, user's guide, quick start tutorial, service guide, Keysight IO Library CD

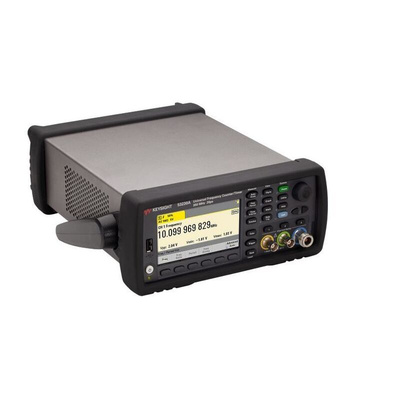

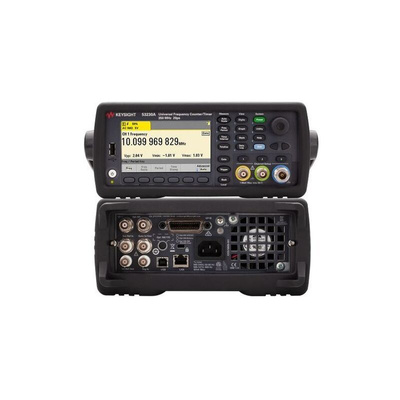

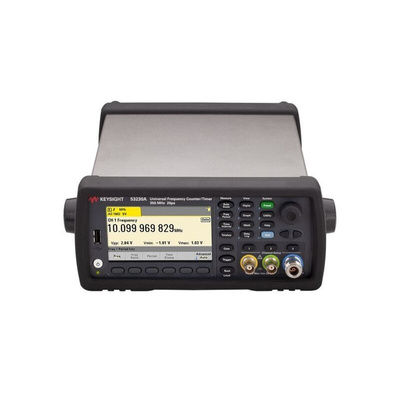

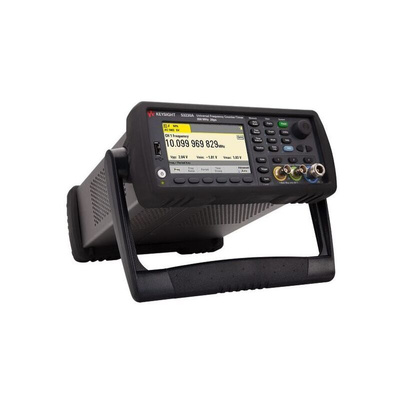

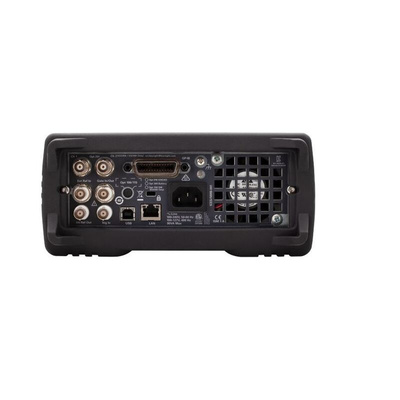

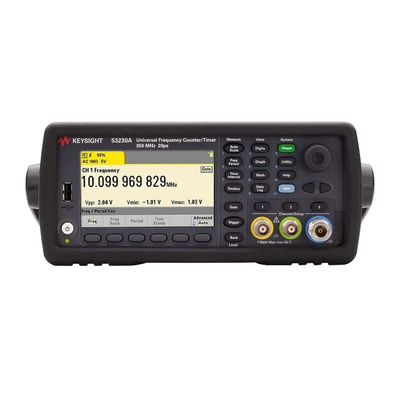

Keysight Technologies Frequency Counter, 2 Channels, 350MHz Bandwidth - 53230A

Take fast and accurate frequency and time interval measurements with this frequency counter from Keysight Technologies. Simply turn on the device and apply a signal to its input for simple yet precise measurement. Thanks to its built-in math analysis and graphing capabilities, you get readings that are easy to interpret. In addition to the counter's two 350MHz input channels, you can add a microwave channel, which allows you to measure frequencies of 6 or 15GHz for increased versatility. This unit comes with a BenchVue software license, making it simple for you to connect and control the device as well as to automate test sequences.

Features & Benefits

• Broad operating temperature range between 0°C and +55°C for use in demanding environments
• Backlit LED display for ease of reading in low-light conditions
• Comes with a power cord and 2m USB cable for quick connections

Applications

• Automotive industry
• Telecommunication centres
• Testing oscillators

What's the power consumption of this frequency counter?

When switched on, this device's power consumption is 90VA. In standby mode, it uses just 6VA of energy to minimise power waste.
