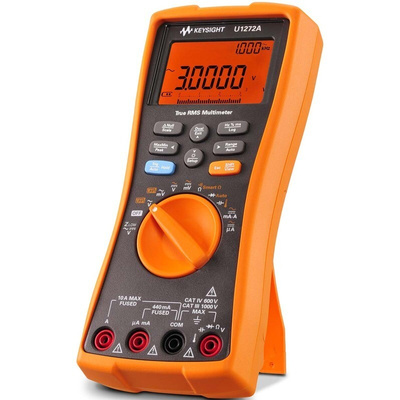

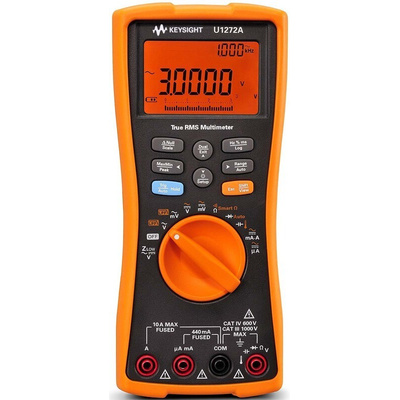

Keysight Technologies U1272A Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated, Мультиметр

Keysight U1272A Digital Multimeters

Keysight U1272A Series handheld digital multimeters are designed for users to perform tests confidently and efficiently over longer periods of time due to the precision, accuracy and repeatability. The U1272A digital multimeter is also designed to increase your production with the longer lasting battery life. The battery life will last up to 300 hours allowing you to work for longer periods of time without having to stop and battery change. The ergonomic shaped handheld digital multimeter has a large display and backlight that allows you to single handedly select measurements functions using the anti-slip rotary dial making it much easier for you to improve production whilst working in lower light environments. This digital multimeter also has an IP54 certified protection, water and dust resistant so that you can carry out test and measurements with confidence, even in harsh working environments. For improved safety the U1272A series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audio (beeper) alerts. This battery powered handheld digital multimeter features true rms readings with a 30,000 count, 4 1/2 digit display and analogue bar graph results without the complications.

Features & Benefits

• 30,000 - count dual display
• Up to 0.05% basic DCV accuracy
• CAT IV 600 V and CAT III 1000 V over-voltage protection
• Longer battery life up to 300 hours
• Manual data logging up to 100 readings
• Auto/event data logging up to 10,000 readings
• Certified to IP 54 for water and dust protection
• Easy connectivity to PC with optional IR-USB cable
• Frequency counter
• Built in Low pass filter for accurate VFD troubleshooting
• Zlow - Low impedance mode
• Smart Ω

The U1272A series digital multimeter measures

• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance
• Temperature

Improve productivity with intelligent features

Designed for maximum efficiency and productivity in industrial settings, these U1272A digital multimeters offer convenient functions such as Zlow to eliminate stray voltages, Smart Ω to minimize false readings due to leakage current

Does this come with a calibration certificate?

Yes - Certificate of Calibration will be available.

Supplied with

Standard test leads, test probes with 4-mm tips, K-type thermocouple and adapter, 4x AAA batteries, test report, Quick Start Guide

Keysight Technologies Multimeter, 1000V AC/DC Maximum Voltage Measurement, LCD Display - U1270 Series - U1272A

Put this handheld multimeter from Keysight Technologies to the test to carry out your electrical measuring tasks. The device is a multitasking pro that measures a wide selection of power-based values, including voltage, current and resistance. Thanks to its battery life of up to 300 hours, you can rely on consistent performance when you're on the go. Thanks to the ergonomic design, it's easy to manage the unit and single-handedly programme it. The anti-slip rotary dial prevents accidental setting changes, so you can remain on point with your designated measurements. A backlight helps you select the right parameters in low-light conditions.

• IP54 rating indicates protection against limited amounts of dust and water spray
• Display resolution of 30,000 counts for precise results
• Broad operating temperature range between -20°C and +55°C for use in harsh conditions

Applications

• Automotive industry
• HVAC systems
• Electrical installations
• Healthcare equipment
• Defence applications

Is this multimeter a safe option for continuity testing in darkened conditions?

Yes, the loud beeper and flashing backlight indicate continuity for better operational safety.

Keysight

U1270 Series Handheld Digital Multimeters Data Sheet
