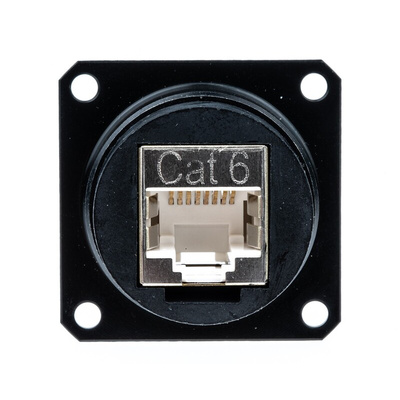

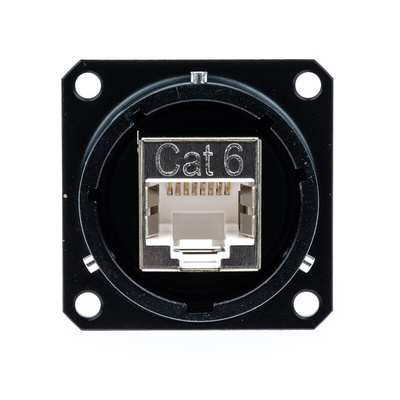

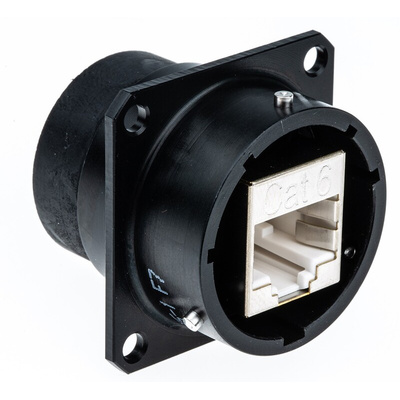

IPT0218-RJ45-1F7, Glenair IPT Series Female RJ45 Connector, Panel Mount, Cat6, Разъем

Glenair IPT Series RJ45 Reverse Bayonet Front Panel Mount Connectors

Glenair IPT Series MIL-DTL-26482 RJ45 square flange connectors are sealed RJ45 connectors that provide a very high level of protection from the most hostile of environments. Standard RJ45 connectors are housed within rugged waterproof reverse bayonet panel mount connectors which feature tough resilient nitrile inserts which provides IP67 protection when mated.

Category Cat.6
Connection 10BaseT, 100BaseTx, 1000BaseT
Working voltage 30 - 42 Vac RMS/Vdc
Maximum current rating 1.5A at 20°C
Maximum contact resistance 20mΩ
Minimum insulation resistance 1.000mΩ at 500 Vdc
Dielectric withstand voltage 1000 V
Operating temperature -40 to + 68° C
IP67 when mated

Glenair IPT Series

Glenair IPT MIL-DTL-26482 series of connectors are robustly sealed connectors that provide a very high level of protection from the most hostile of environments. Standard RJ45 and USB-A connectors are housed within rugged waterproof reverse bayonet connectors with a black zinc cobalt plating.

MIL-DTL-26482 Type Reverse Bayonet Coupling Data Sheet
