301097-006, Raytech Unshielded Branch Pre-filled Gel Kit Cable Jointing Kit 4 x 1.5 → 6 mm², 4 x 4 → 16 mm²

7133873
Номер производителя: 301097-006Производитель: Raytech
Цена за шт.
30297.00 руб. (С НДС) *
Количество 15+ 50+
Цена 28782.00 руб. 27267.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

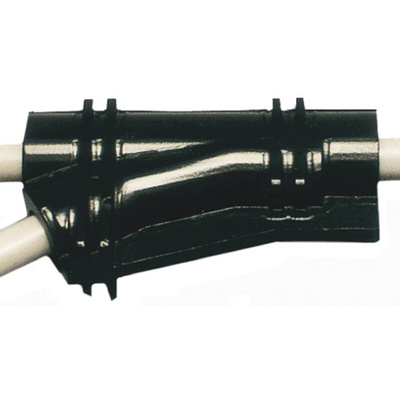

Clik Joint Cable Jointing Kit

The Raytech CLIK -FIRE is a fast, ready to use joint for 0.6/1 kV extruded cables. Formed by a robust case which is pre-filled with a suitable gel, which snaps closed to provide fast and easy installation. Available in 2 versions, branch connection and straight/branch connection, both are tested in accordance with the main international specifications, also with repeated flexing and torsion tests and immersion in water. The joints have been declared to conform to the mechanical and sealing specifications required for plastic cable accessories. Both the joints and their components have no shelf life, are chemically inert and therefore completely safe to use. The connections are re-enterable even after long working periods. Made of self-extinguishing components the joints are flame retardant.

No shelf life
Completely non toxic
Ready to use, with snaps closing
Re-enterable even after long working periods
Degree of protection higher than IP68

Approvals

Electrical performances: CEI 20-33, ANSI CI 19, EN 50393, Class 2
No flame propagation: Cenelec HD 405-1, IEC 332-1
Degree of protection; in accordance with EN 60529-IEC 529 more than IP68

Supplied with
type":"Supplied with",

1 x closure pre-filled with gel with phase separator, 2 x cable ties, 4 plastic fillers, instructions

Техническая спецификация
pdfRapid Joint Data Sheet
pdfClik fire Rapid Gel-filled Joint Data Sheet
pdfCLIK FIRE – CLAK tape – Rapid Joint – Gel Pack GEL DATA SHEET
Количество ядер:
4
Комплект включает в себя:
Кабельные стяжки, Инструкции, Пластиковые наполнители, Предварительно заполненный корпус с разделителем фаз
Материал:
Pre-filled Gel Kit
Применение:
Неэкранированный
Размер кабеля:
4 x 1.5 → 6 мм², 4 x 4 → 16 мм²
Размеры:
185 x 75 x 43мм
Тип соединения:
Branch
