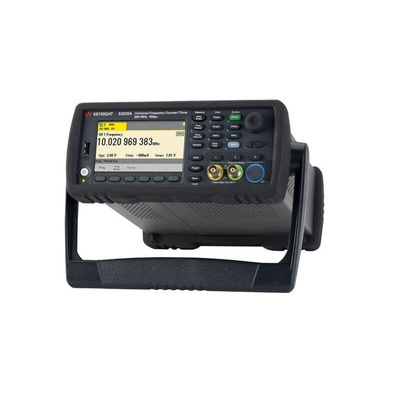

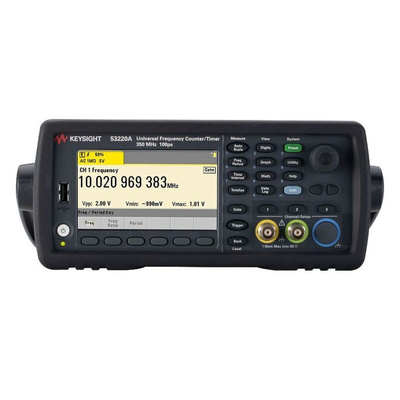

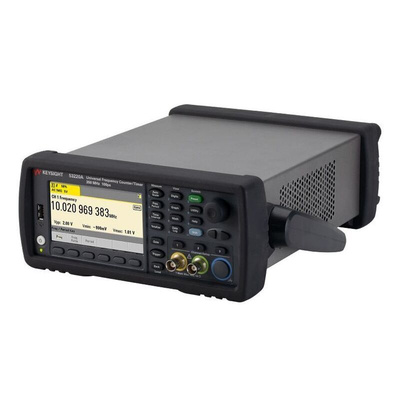

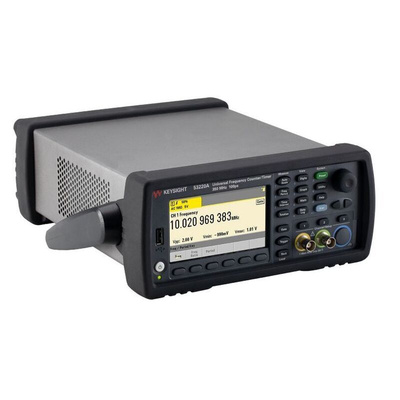

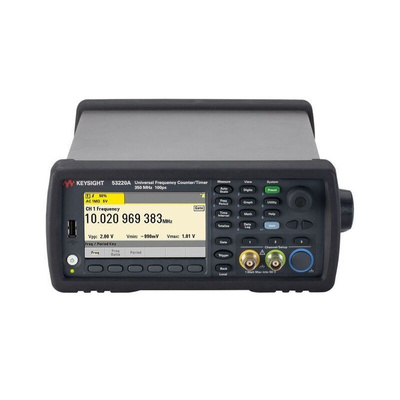

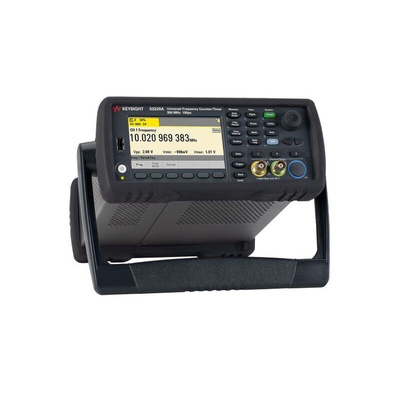

Keysight Technologies 53220A Frequency Counter, 0 Hz Min, 350MHz Max, 12 Digit Resolution, Частотомер

Keysight 350 MHz Counters

Keysight 53200A Series is a new generation of 350 MHz RF and Universal counter/timers delivering exceptional performance and usability standards. These are the first frequency counters with LXI-C compliance. Their high speed measurements and built-in analysis provide functionality not previously available in basic frequency counters/timers. The 53200A models offer resolution capabilities up to 10 digits/second frequency ( 53210A 713-4286 ) or 12 digits/second frequency ( 100ps 53220A 713-4295 , 20ps 53230A 713-4298 ). All models offer built-in analysing and graphing capabilities to maximise insight and information delivered.

• Optional 6 GHz or 15 GHz Input
• Single-shot resolution 20ps models
• 1M reading memory & datalogging

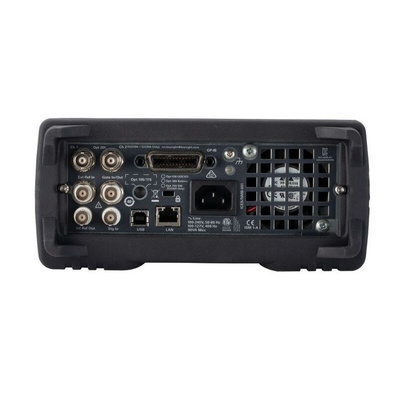

• LXI-C, LAN, USB, GPIB Large color graphical display: Math, statistics, histogram, trend/stripchart, datalogging
• 1MSa continuous/gap-free measurement and timestamp capability (53230A)
• Optional pulse microwave measurements (53230A) and battery

Approvals

Cat 1 (300 V), EN61010, NRTL certified, EN55011, 61326-1

Supplied with

certificate of calibration, IEC power cord, USB cable, CD including programming examples, programmer's reference help file, user's guide, quick start tutorial, service guide, Keysight IO Library CD

Keysight Technologies Frequency Counter, 2 Channels, 15-Digit Display Resolution - 53200A Series - 53220A

Accurately measure electronic signals with this frequency counter from Keysight Technologies. It has a broad frequency input range of 1mHz to 350MHz for maximum versatility. For ease of data analysis, this frequency counter allows you to display histograms and trends. A front-panel USB connector makes it simple to connect this device to a computer for reliable data transfer. It takes 1000 readings per second, making it a good choice for quick real-time monitoring of your devices.

Features & Benefits

• Wide operating temperature range between 0°C and +55°C for use in demanding environments
• Large memory of one million readings for ease of data storage

Applications

• Research and development
• Manufacturing facilities
• Electrician services

Is this unit's battery rechargeable?

Yes, this unit's 3V lithium-ion battery is rechargeable, helping to minimise battery waste. It needs only four hours to recharge for minimal downtime.

Do I need to ground this counter before I use it?

Yes. This unit's power plug has a ground pin that must be connected to the ground terminal of the outlet to reduce the risk of electric shocks.
