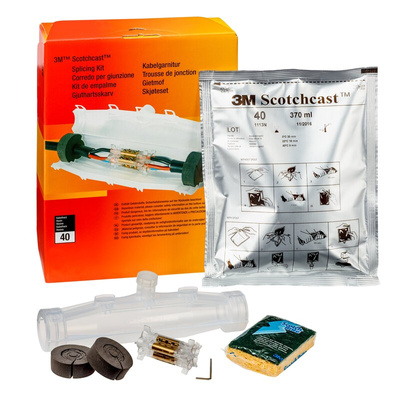

92-NBA3, 3M Resin Filled Cable Joint Kit, Straight Joint Type , 4 x 16 → 25mm²

3M Cable Joint Kit, Straight Joint, 270mm Length - Scotchcast Series - 92-NBA3

Protect cable joints in double-quick time with this kit from 3M. As it's suitable for low-voltage energy cables and mechanical connections, it’s a versatile option. To minimise mess when you’re preparing and dispensing the resin, the set uses a closed mixing and pouring (CMP) system. Simply tip the protective liquid directly into the see-through moulded body, which lets you see that the joint is covered. A watertight closure cap snaps into place to seal the deal.

Features & Benefits

• Pre-cut foam sealing elements cut the need for extra tools
• Handy abrasive sponge provided to clean cable jackets
• 5-core spacer snaps in to separate cables
• Detailed instruction drawings give step-by-step guidance

Applications

• Underground power cable repairs
• Telecommunications networks
• Residential wiring

Does the resin need to be a certain temperature before mixing?

Yes, the resin needs to be at least +5°C before mixing, so keep it warm if you're working in chilly conditions.

Scotchcast Resin Kits 92-NB A0 up to 92-NB A7 Inline Joint Kit Series with Resin 40 Data Sheet

SCOTCHCAST Kit 92 (EN - SDS)

Scotchcast Resin Kits Datasheet

Brochure - Scotchcast Resin Cable Joint Kits

Catalogue - Electrical Solutions
