37103-A165-00E MB, 3M 3-Way IDC Connector Plug for Cable Mount, 1-Row, Разъем

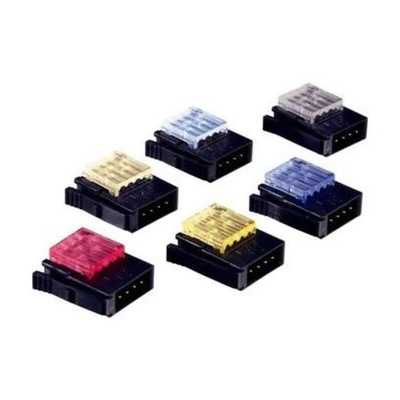

3M 371 Series Mini-Clamp II 2mm Cable Mount IDC Plugs

From 3M, the 371 series Mini-Clamp II 2mm cable mount IDC plug connectors designed to provide easy, quick and reliable IDC wire terminations without the need for any special wire preparation or tooling. These 2mm Mini-Clamp II wiremount IDC connectors have a compact, space saving design and feature integrated cable retention and latches for a secure connection.

A wide range of wire size diameters are accepted by these Mini-Clamp II IDC cable mount connectors which are colour-coded for easy wire size identification.

Features and Benefits

• Standard connector for sensor, LED, switch, and other small device connections
• Offering with additional internal strain relief for demanding applications, including mating with low-flexibility wires
• Easy, quick, and reliable IDC termination using a standard pliers

Applications

These Mini-Clamp II wiremount IDC plugs are designed to provide connection reliability and cost performance in I/O applications commonly found in a wide range of sensor control systems, including factory automation and industrial controls.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

Note

Stock numbers 827-3616 and 827-3619 are designed for wiring supplied from Japan and Asia

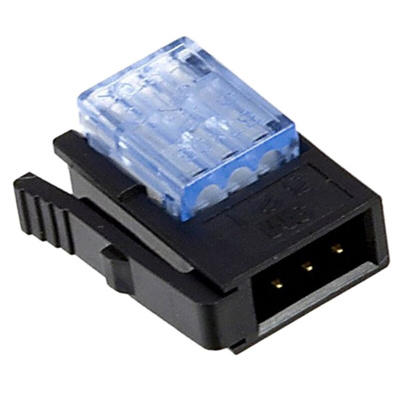

3M IDC Connector, 3A Maximum Current Rating, 2mm Pitch - 371 Series - 37103-A165-00E MB

To cut back on time spent prepping wires, choose this IDC connector from 3M. Its three contacts sharply pierce the outer jackets of cables to reach the conductors, so you don't need to strip them first. A built-in retention feature latches onto the cable to achieve a secure connection, even in environments exposed to impact and vibration. As the contacts are made from highly conductive copper alloy, you can be sure your circuits will enjoy a power boost.

Features & Benefits

• Supports a wire size range between 26 and 20AWG for versatility
• Thermoplastic body delivers insulation protection to prevent electric shocks

Applications

• Audio-visual systems
• Smartphones
• Consumer electronics

Is this IDC connector flame retardant?

Yes, the unit is flame retardant. Thanks to its flammability rating of UL 94V-0, you can be sure it stops burning after 10 seconds in the event of a fire.
