37103-B122-00E MB, 3M 3-Way IDC Connector Plug for Cable Mount, 1-Row, Разъем

3M 371 Series Mini-Clamp II 2mm Cable Mount IDC Plugs

From 3M, the 371 series Mini-Clamp II 2mm cable mount IDC plug connectors designed to provide easy, quick and reliable IDC wire terminations without the need for any special wire preparation or tooling. These 2mm Mini-Clamp II wiremount IDC connectors have a compact, space saving design and feature integrated cable retention and latches for a secure connection.

A wide range of wire size diameters are accepted by these Mini-Clamp II IDC cable mount connectors which are colour-coded for easy wire size identification.

Features and Benefits

• Standard connector for sensor, LED, switch, and other small device connections
• Offering with additional internal strain relief for demanding applications, including mating with low-flexibility wires
• Easy, quick, and reliable IDC termination using a standard pliers

Applications

These Mini-Clamp II wiremount IDC plugs are designed to provide connection reliability and cost performance in I/O applications commonly found in a wide range of sensor control systems, including factory automation and industrial controls.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

Note

Stock numbers 827-3616 and 827-3619 are designed for wiring supplied from Japan and Asia

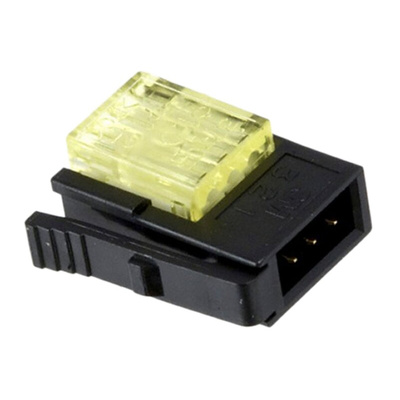

3M Cable Mount IDC Connector Plug, 3 Way, 1 Row - 371 Series - 37103-B122-00E MB

This 3M cable mount IDC (insulation displacement connector) plug makes carrying out wire terminations and creating connections simple. You won't need to prepare wires or use special tools – the pins pierce wire sheaths and form instant contacts through cold welds for the relay of reliable data signals. The unit's space-saving design means it takes up minimal space on your printed circuit board (PCB). You can use this IDC plug to establish connections in small devices in domestic and commercial environments.

• Latch establishes a secure connection that won't come loose, ensuring uninterrupted data transfer• RoHS (Restriction of Hazardous Substances) compliance gives you peace of mind that the item contains only negligible amounts of any harmful substances, if any• Thermoplastic housing insulates the connection and prevents any heat that's generated from affecting adjacent components

Applications

• LED (light-emitting diode) equipment• Sensors• Switches• Factory automation systems• Industrial controls

Why is it important to choose an IDC plug with a thermoplastic casing?

Thermoplastics don't readily conduct heat. Often, connections generate a lot of heat, which can pose a fire risk if it isn't contained. A thermoplastic casing on an IDC plug protects both the internal connection and other components in the system from fire.

Mini-Clamp Connectors

3M Simply Connected Solutions Catalogue

Mini-Clamp II 2mm Cable Mount IDC Plug
