37104-A165-00E MB, 3M 4-Way IDC Connector Plug for Cable Mount, 1-Row, Разъем

3M 371 Series Mini-Clamp II 2mm Cable Mount IDC Plugs

From 3M, the 371 series Mini-Clamp II 2mm cable mount IDC plug connectors designed to provide easy, quick and reliable IDC wire terminations without the need for any special wire preparation or tooling. These 2mm Mini-Clamp II wiremount IDC connectors have a compact, space saving design and feature integrated cable retention and latches for a secure connection.

A wide range of wire size diameters are accepted by these Mini-Clamp II IDC cable mount connectors which are colour-coded for easy wire size identification.

Features and Benefits

• Standard connector for sensor, LED, switch, and other small device connections
• Offering with additional internal strain relief for demanding applications, including mating with low-flexibility wires
• Easy, quick, and reliable IDC termination using a standard pliers

Applications

These Mini-Clamp II wiremount IDC plugs are designed to provide connection reliability and cost performance in I/O applications commonly found in a wide range of sensor control systems, including factory automation and industrial controls.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

Note

Stock numbers 827-3616 and 827-3619 are designed for wiring supplied from Japan and Asia

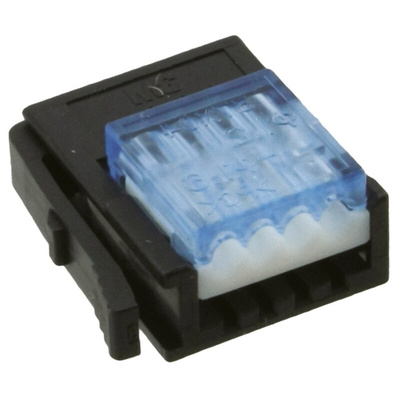

3M IDC Connector Plug for Cable Mount, 4 Way, 1 Row - 371 Series - 37104-A165-00E MB

Use this IDC (insulation displacement contact) socket from 3M for quick and easy wire terminations. It provides a secure link between ribbon cables and connection ports on printed circuit boards (PCBs). The component is easy to install and doesn't call for any special mounting tools. Its copper-alloy mating contacts offer a high conductivity rate for seamless signal transmission. It's commonly used as a standard socket for light-emitting diodes (LEDs), switches and connections in other small devices.

• Glass-reinforced thermoplastic body and protective cover for insulation and impact resistance• Pitch of 2mm to accommodate a variety of wire sizes• Compact dimensions to fit into small circuit designs• Broad operating temperature range of between -20°C and +85°C for use in demanding conditions• Gold-over-nickel contact plating for improved corrosion resistance

Applications

• Automation systems• Semi-automatic assembly equipment• Packaging and processing plants

How does an IDC socket work?

With an IDC socket, you don't need to strip a cable. The socket forces its way through the insulated jacket of the cable to provide a link between the conductor and the connector contact.
