37303-A165-00E MB, 3M 3-Way IDC Connector Socket for Cable Mount, 1-Row, Разъем

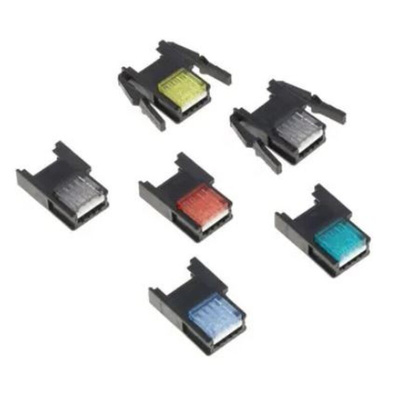

3m MIni-Clamp II IDC Connector Socket

From 3M, the 371 series Mini-Clamp II 2mm cable mount IDC socket connectors designed to provide easy, quick and reliable IDC wire terminations without the need for any special wire preparation or tooling. These 2mm Mini-Clamp II wiremount IDC connectors have a compact, space saving design and feature integrated cable retention and latches for a secure connection.

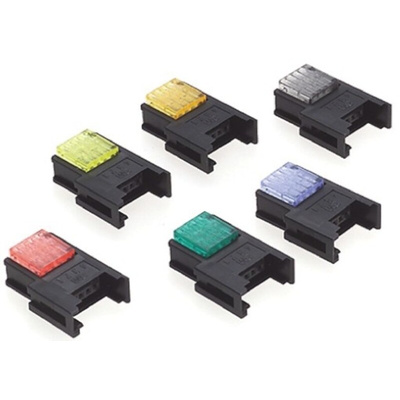

A wide range of wire size diameters are accepted by these Mini-Clamp II IDC cable mount connectors which are colour-coded for easy wire size identification.

Features and Benefits

• IDC wiremount socket, 2 mm
• Integrated cable retention
• Multiple wire size diameter
• No special tooling needed
• Latches provide reliable interfaces
• High number of mating cycles

These Mini-Clamp II wiremount IDC sockets are designed to provide connection reliability and cost performance in I/O applications commonly found in a wide range of sensor control systems, including factory automation and industrial controls.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

3M IDC Connector, 3A Maximum Current Rating, 1.2 to 1.6mm² Cable OD - 373 Series - 37303-A165-00E MB

For quick-as-a-flash wiring, go for this IDC connector from 3M. It caps off cables with a simple plug-in socket, letting you click your gear together easily. By handling three cores at once, the unit's a handy way to streamline your system. Robust gold and nickel-plated copper alloy contacts keep signals flowing freely through it. Thanks to its colour-coded blue body, you'll know if the component is the right size for your cables at just a glance.

Features & Benefits

• Pierces insulation during mounting for convenience
• Current rating of 3A to keep up with everyday electrical loads
• Labelled contact positions, making it easy to line up cables

Applications

• Industrial robotics
• Electronics manufacturing
• Telecommunications systems

What temperatures can I use this IDC connector in?

The product works in operating temperatures between -20°C and +85°C, making it a safe bet for tough industrial conditions.
