37303-B122-00E MB, 3M 3-Way IDC Connector Socket for Cable Mount, 1-Row, Разъем

3m MIni-Clamp II IDC Connector Socket

From 3M, the 371 series Mini-Clamp II 2mm cable mount IDC socket connectors designed to provide easy, quick and reliable IDC wire terminations without the need for any special wire preparation or tooling. These 2mm Mini-Clamp II wiremount IDC connectors have a compact, space saving design and feature integrated cable retention and latches for a secure connection.

A wide range of wire size diameters are accepted by these Mini-Clamp II IDC cable mount connectors which are colour-coded for easy wire size identification.

Features and Benefits

• IDC wiremount socket, 2 mm
• Integrated cable retention
• Multiple wire size diameter
• No special tooling needed
• Latches provide reliable interfaces
• High number of mating cycles

These Mini-Clamp II wiremount IDC sockets are designed to provide connection reliability and cost performance in I/O applications commonly found in a wide range of sensor control systems, including factory automation and industrial controls.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

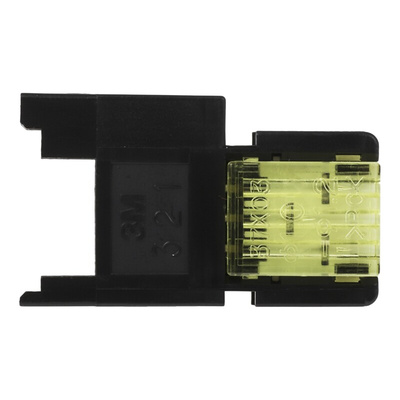

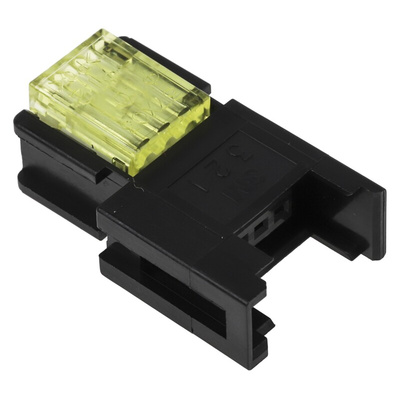

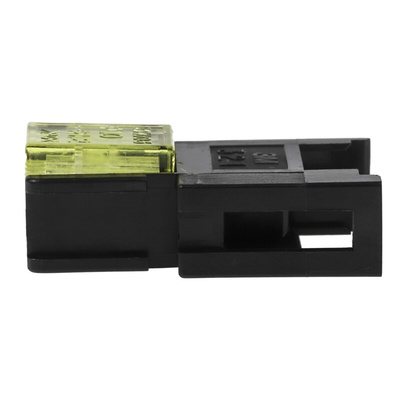

3M IDC Connector Socket for Cable Mount, 3 Way, 1 Row - 373 Series - 37303-B122-00E MB

Looking for a compact connection solution for printed circuit boards (PCBs)? This yellow 3-way socket from 3M uses insulator displacement connection (IDC) technology to force back the cable jackets so the conductors are exposed. It provides a reliable alternative to crimped or soldered sockets and accepts both solid and stranded wires for use in a variety of applications. This plug has a thermoplastic body for safe insulation from electric shocks. It also has a 2mm pitch to ensure that the conductors don't touch each other, preventing short circuits.

• Copper contact material for a reliable connection• Gold-over-nickel contact plating for corrosion resistance• Operating temperature range of -20°C to +85°C for use in demanding conditions• Thermoplastic protective covering to shield cables from impact• Simple termination using pliers saves on installation time

Applications

• Solid-state lighting• Pressure sensors• Automotive industry, for example in automotive safety systems

Is this plug flame-resistant?

This component has a UL (Underwriters Laboratory) 94V-0 rating. This means that in the event of a fire, combustion stops after 10 seconds or less. This makes it a flame-retardant component suitable for use in working environments where there may be a risk of fire.
