37304-A206-00E MB, 3M 4-Way IDC Connector Socket for Cable Mount, 1-Row, Разъем

3m MIni-Clamp II IDC Connector Socket

From 3M, the 371 series Mini-Clamp II 2mm cable mount IDC socket connectors designed to provide easy, quick and reliable IDC wire terminations without the need for any special wire preparation or tooling. These 2mm Mini-Clamp II wiremount IDC connectors have a compact, space saving design and feature integrated cable retention and latches for a secure connection.

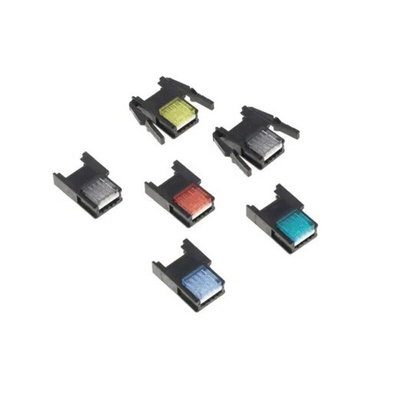

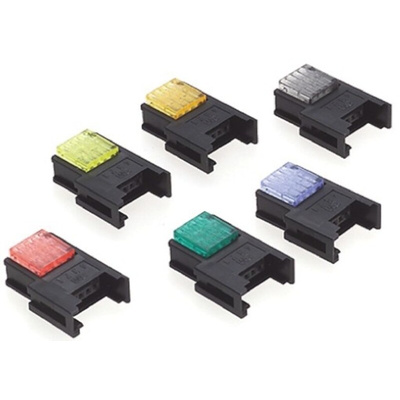

A wide range of wire size diameters are accepted by these Mini-Clamp II IDC cable mount connectors which are colour-coded for easy wire size identification.

Features and Benefits

• IDC wiremount socket, 2 mm
• Integrated cable retention
• Multiple wire size diameter
• No special tooling needed
• Latches provide reliable interfaces
• High number of mating cycles

These Mini-Clamp II wiremount IDC sockets are designed to provide connection reliability and cost performance in I/O applications commonly found in a wide range of sensor control systems, including factory automation and industrial controls.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

3M IDC Connector, 4 Ways, 3A Current Rating - 373 Series - 37304-A206-00E MB

Quickly terminate up to four ribbon cables with this IDC socket from 3M. Its IDC contacts mean there's no need for you to strip wires before connecting components to a PCB. A robust thermoplastic housing resists wear and corrosion, so you can rely on the unit's longevity in demanding settings. Thanks to an integrated wire retention cover, wires are conveniently held in place during termination. With a current rating of 3A, this connector is suited to higher-powered industrial control applications.

• Can be mated up to 300 times, for reduced wastage
• Mating latches for reliable interconnection in demanding applications
• Accepts multiple wire diameters between 26 and 20AWG for versatility

Applications

• LED lighting
• Pressure sensors
• Food and packaging industries

What tools do I need when terminating this connector?

A pair of standard pliers is all you need to terminate this socket.
