37304-B122-00E MB, 3M 4-Way IDC Connector Socket for Cable Mount, 1-Row, Разъем

3m MIni-Clamp II IDC Connector Socket

From 3M, the 371 series Mini-Clamp II 2mm cable mount IDC socket connectors designed to provide easy, quick and reliable IDC wire terminations without the need for any special wire preparation or tooling. These 2mm Mini-Clamp II wiremount IDC connectors have a compact, space saving design and feature integrated cable retention and latches for a secure connection.

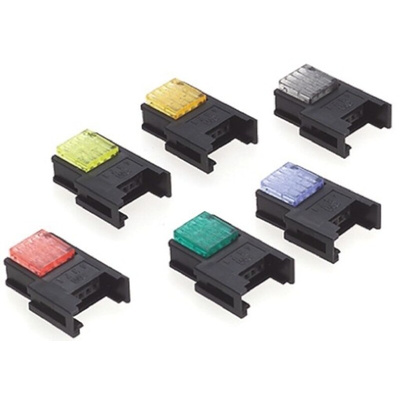

A wide range of wire size diameters are accepted by these Mini-Clamp II IDC cable mount connectors which are colour-coded for easy wire size identification.

Features and Benefits

• IDC wiremount socket, 2 mm
• Integrated cable retention
• Multiple wire size diameter
• No special tooling needed
• Latches provide reliable interfaces
• High number of mating cycles

These Mini-Clamp II wiremount IDC sockets are designed to provide connection reliability and cost performance in I/O applications commonly found in a wide range of sensor control systems, including factory automation and industrial controls.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

3M IDC Connector, MiniClamp Latch Mechanism, 32V AC Voltage Rating - 373 Series - 37304-B122-00E MB

Need a handy way of terminating your I/O cable assemblies? Look no further than this IDC connector socket from 3M. It pairs with a separate plug-style component to create reliable links between ribbon cables. You'll find it a breeze to install, as this termination type needs no special wire preparation or tools. As the unit's part of 3M's MiniClamp range, there's a built-in latch retention feature to ensure well-secured cable-to-cable connections that won't work loose.

• Accepts wire sizes between 26 and 20AWG for wide compatibility with cables
• Comes with integrated cable retention to resist damage from pulling forces

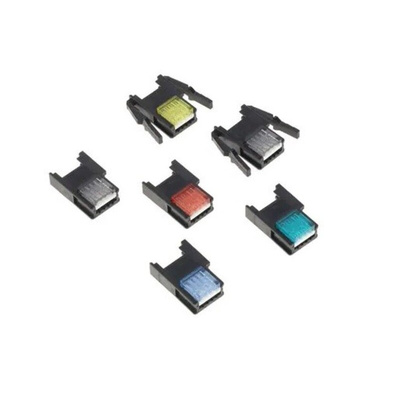

• Colour-coordinated bodies make it easy to choose the right connector for your wire

Applications

• SSDs
• Sensor control systems
• LEDs
• Switches

Does this connector ensure reliable signal strength?

The connector's gold-over-nickel plated contacts deliver high conductivity and corrosion resistance, so you get strong, high-quality signals.

Mini-Clamp Connectors

3M Simply Connected Solutions Catalogue

Datasheet - 37304-B122-00E MB
