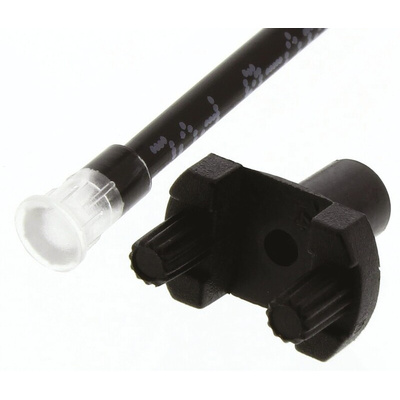

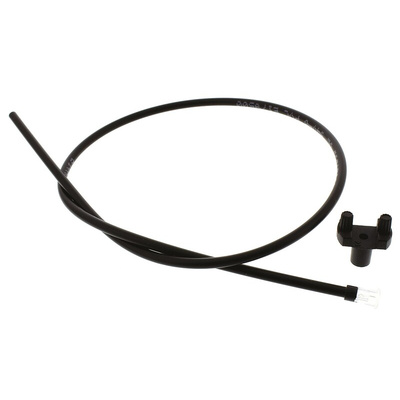

SMFLP12.0 Bivar, PCB Mounted Flexible LED Light Pipe, Clear Flat Lens, Оптический волновод

Bivar SMFLP Series Flexible LED Light Pipes

The SMFLP series from Bivar is a family of flexible light pipe assemblies. They feature a flexible light pipe with a vertical surface mount (SMD) LED adapter. SMFLP flexible light pipes have a low profile clear lens is a variety of different diameters. They are also available in a range of different fibre lengths.
SMFLP light pipes are mounted over SMD LEDs and transfer the light to the desired user interface, for example front panels. The flexibility of the light pipe enables flexibility in design and in the positioning of the LEDs.

Features of the SMFLP light pipe assemblies:
Flexible light pipe
SMD LED adapter
Low profile lens
Compatible LED dimensions: 6 x 4 x 2 (max) mm
Minimum 20 mcd brightness level is recommended

LED Light Pipes, Bivar

Bivar's range of LED light pipes include both rigid and flexible types. Their light pipes enable the user to move light from the LED source to a desired destination over a range of distances up to 100m. Bivar's LED light pipes are ideal for design flexibility.

Datasheet
