VW3A3601, Schneider Electric EtherCAT Option Card

Altivar ATV32 Communications Card Range

The Altivar 32 Drives have been created and designed alongside a range of communication cards. Through the use of Communication Cards the Altivar 32 VFD’s (variable frequency drives) can also be connected to other industrial communication buses and networks.

Features and Benefits

• The communication cards are available in a “cassette” format and are easy to use.
• Easy to mount and remove.
• Facilitates the exchange of data.
• Offers users an easy option of networking solutions that reduces the cost and time to wire and install factory automation devices.
• Seamless integration into the main control system architectures.
• Facilitates customisation to specific applications.

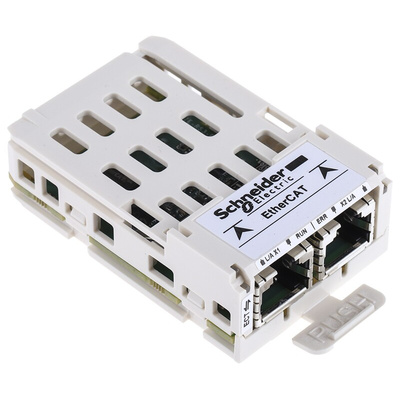

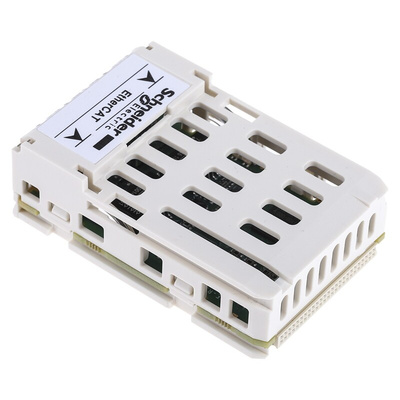

Schneider VW3A3601 Communication Card

• The communication port protocol is for a EtherCAT.
• Has an electrical connection of two connectors RJ45.
• The transmission rate is 100 Mbps .
• This particular model has a cable distance of <= 100 m for 100 Mbps.
• The VW3A3601 Communication card has a display type pf one LED input status, one LED RUN, 1 LED error and one LED output status.

Standards

IEC 61800-7-201 (CiA 402)

VW3A3601 Ethercat 2 x RJ45 communication card Data Sheet

Instruction Manual

Product Environmental Profile
