V0DDTS, GIC SPDT Multi Function Timer Relay, 24 → 240 V ac/dc 0.1 s → 999 h, DIN Rail Mount

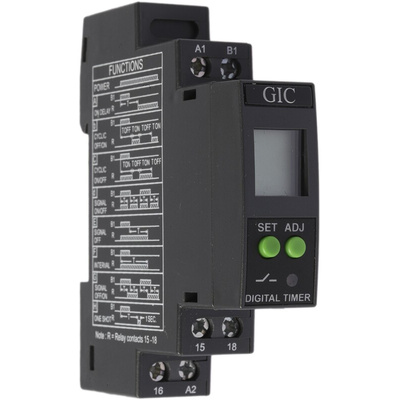

GIC Multi-function Timer Relay

The GIC multi-function timer relay is a compact digital equipment with high precision. It performs different delay functions like cyclic off/ on, cyclic on/ off, interval, ON delay, one-shot output, signal OFF delay, signal off/ on, and signal on/ off in the range of 0.1 seconds to 999 hours. This timer relay has a wide range of programming features that provide the user with a comprehensive range of timing functions to suit a wide variety of applications. Due to the highly versatile voltage range, this timer relay can be installed into new and existing applications in an extremely hassle free way. Its low cost and high performance make it ideal for a wide range of applications in process control environments.

Features and Benefits

Fine adjustment of selected time range
1C/O SPDT contact configuration with relay output 8A
Supply voltage ranges from 24VAC to 240VAC and 24VDC to 240VDC
8 selectable functions available
Covers a wide AC and DC voltage range for added installation flexibility
Flexible functionality with wide range applications
Selectable up/down counting modes to show elapsed/remaining time
3 digit LCD for pre-set time and running time
Option to select up/down counting
Tamper proof with key lock function
All settings accomplished with only two keys
Compact 17.5mm
Self-extinguishing housing
Clear LED indication of relay status

Applications

Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications

CE certified
IP20 rating for terminals
IP30 rating for enclosure
IP50 rated for front panel
CE certified
IEC 61000-3-2
IEC 61000-4-2
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-11
CISPR 14-1
