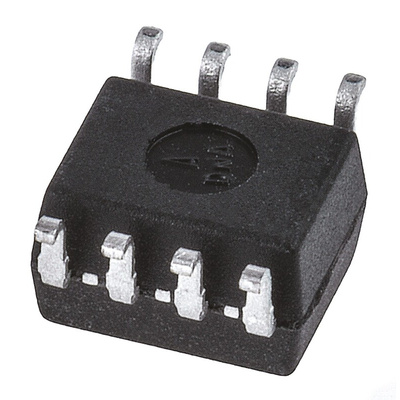

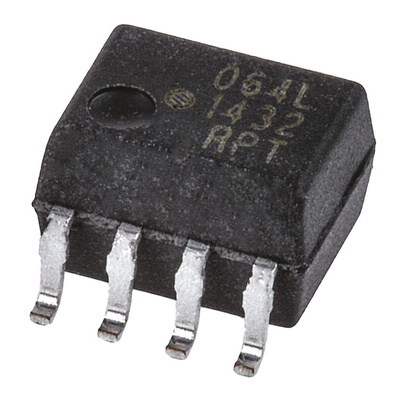

Broadcom, ACPL-064L-000E DC Input Logic Gate Output Dual Optocoupler, Surface Mount, 8-Pin SOIC

Ultra Low Power 10MBd Digital CMOS Optocoupler

The Broadcom ACPL-064L (dual-channel, SO-8 package) optocoupler is part of the Broadcom ultra low power ACPL-x6xL digital optocouplers that combine an AlGaAs light emitting diode (LED) and an integrated high gain photodetector. The optocoupler consumes extremely low power, at maximum 1.3mA IDD current per channel across temperature. With a forward LED current as low as 1.6 mA, most microprocessors can directly drive the LED.
An internal Faraday shield provides a guaranteed common mode transient immunity specification of 20 kV/μs. Maximum AC and DC circuit isolation is achieved while maintaining TTL/CMOS compatibility.
The optocouplers CMOS outputs are slew-rate controlled and is designed to allow the rise and fall time to be controlled over a wide load capacitance range.
The ACPL-x6xL series operates from both 3.3 V and 5 V supply voltages with guaranteed AC and DC performance from –40°C to +105°C.
These low-power optocouplers are suitable for high speed logic interface applications.

Features

•Ultra low IDD current: 1.3mA/channel max
•Low input current: 1.6mA min
•Built-in slew-rate controlled outputs
•20 kV/μs min Common Mode Rejection (CMR) at VCM = 1000 V
•High Speed: 10 MBd min
•Guaranteed AC and DC performance over wide temperature: -40°C to +105°C
•SO8 package
•Safety Approval (Pending)
- UL 1577 recognized - 3750 V rms for 1 minute
- CSA Approval
- IEC/EN/DIN EN 60747-5-5 Approval for Reinforced Insulation
•RoHS compliant
•Options available are:
500 = Tape and Reel Packaging Option
060 = IEC/EN/DIN EN 60747-5-5 VIORM = 567 VPEAK
XXXE = Lead Free Option

Optocouplers, Avago Technologies

Low-Power 10-MBd Digital CMOS Optocouplers Datasheet
