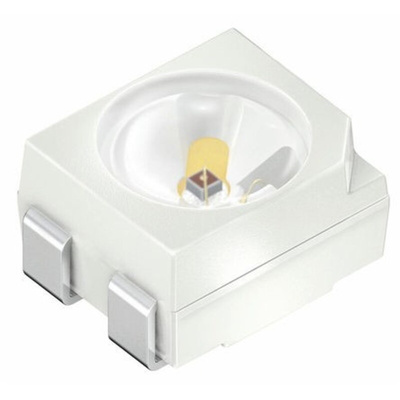

2.5 V Red LED PLCC 4 SMD, Broadcom ASMT-QRBD-AEF0E, Светодиод

Avago ASMT-QxBD-A Series LEDs

The ASMT-QxBD-A series, from Avago Technologies, are Super 0.5W PLCC-4 SMT LED indicators. Its package design allows it to be driven at high current and it is able to dissipate heat efficiently. The ASMT-QxBD-A LEDs produce a higher light output and improved flux performance in comparison to the Power PLCC-4 SMT LEDs.
The ASMT-QxBD-A LEDs are designed for high reliability, better performance and to operate under a variety of environmental conditions. These mid-power LEDs are therefore suitable for applications in harsh conditions, for example exterior automotive. Other suitable applications include interior automotive, electronic signs/signals, office automation, home appliances and industrial equipment.

Features of the ASMT-QxBD-A series:
- PLCC-4 package: 3.2 x 2.8 x 1.9 mm
- High reliability
- Silicone resin encapsulation
- High intensity brightness
- AllnGaP chip technologies
- High optical efficiency

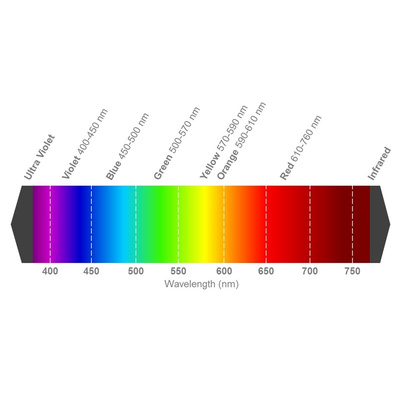

- Red, re-orange and amber colours
- Low thermal resistance: 60°C/W
- Wide viewing angle: 120°
- Longer life time

Visible Light LEDs, Avago Technologies

ASMT-QxBD-Axxxx Super 0.5W Power PLCC-4 Surface Mount LED Indicator Data Sheet
