6EP1331-5BA10, Siemens SITOP PSU100C Switch Mode DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 1.3A, Блок питания

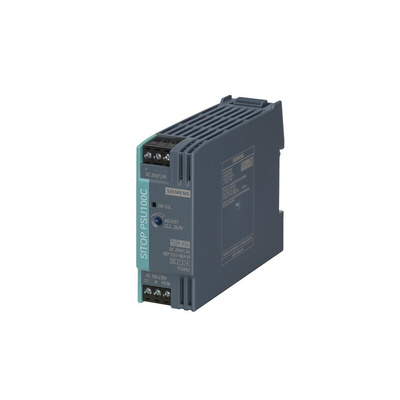

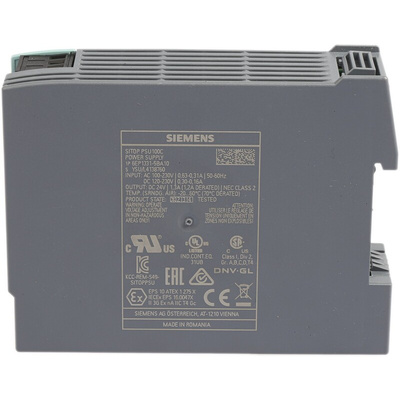

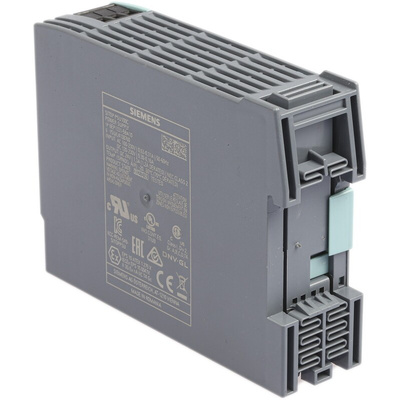

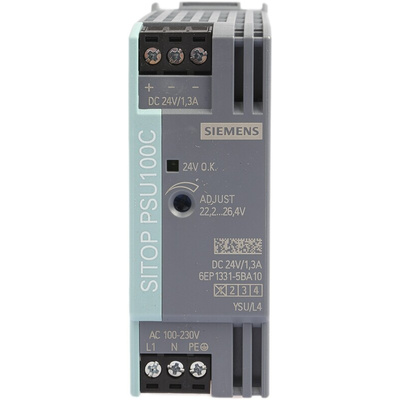

Siemens DIN Rail Power Supply, Switch Mode, 30W Power Rating - SITOP Series - 6EP1331-5BA10

Use this switch-mode DIN rail power supply from Siemens to provide a stable voltage to industrial equipment like sensors and relays. By preventing short-circuits and current overload, it ensures your system is safeguarded against potential damage caused by electrical faults. A green LED allows for quick and convenient visual status indication. Thanks to its low power loss of 0.75W during no-load operation, this device suits applications frequently left in standby mode. It snaps onto a DIN rail for quick and tool-free installation and a miniature size of 80 (height) x 30 (width) x 100mm (depth) makes the unit suitable for small control cabinets.

• IP20-rated enclosure is touch-proof and protected against objects larger than 12mm
• Screw terminals hold wires securely, so there's less need for re-tightening
• Galvanic isolation prevents direct current flow between input and output for electrical safety
• Wide operating temperature range of -20°C to +70°C for use in demanding conditions

Does this power supply have an adjustable output range?

Yes, to suit your system's needs, you can adjust the output range of this power supply between 22.2 and 26.4V DC.

6EP1331-5BA10 Datasheet

Manual - 6EP1331-5BA10
