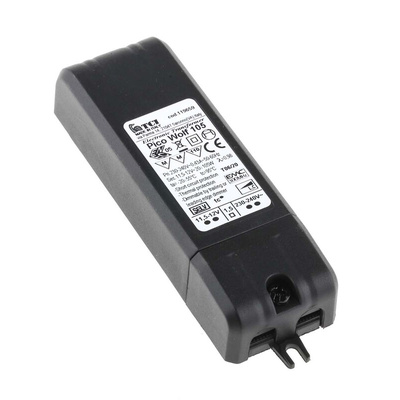

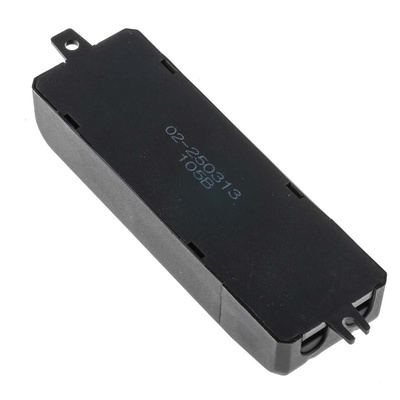

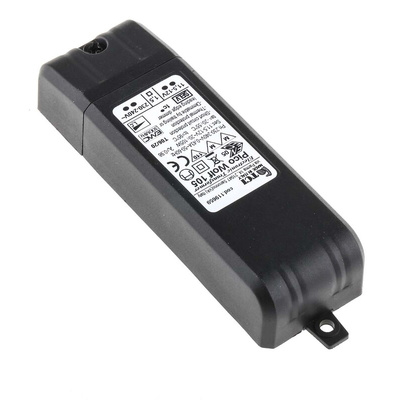

RS PRO 20 → 105W Light Transformer, 230V ac, 12 V, Трансформатор

7141394
Производитель: RS PRO
Цена за шт.
5367.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Dimmable Electronic Transformers

IP20 independent electronic transformers for halogen lamps

Class II protection against electric shock
Protected against overheating, voltage spikes and overloads
Secure the transformer using inbuilt screw slots

Low Voltage Lighting Transformers

Dimming Methods (where applicable):
Leading Edge:
The control device is either a thyristor or triac which blocks power until they are switched on by the control signal. At that point the current flows almost instantaneously and continues to flow until the end of the half cycle of the mains waveform. When the signal reaches zero, the device turns off and no more current is passed until it is triggered again. Turning the power on and off in this manner averages out creating a constant intensity level and by altering the precise trigger point over a period of time the lamp can be dimmed.

Trailing Edge:
Since this method of dimming uses transistor technology it is not limited to just switching, therefore current can be controlled gradually. Transistors can be programmed to pass current at the start of each half cycle, and gradually switch off later. This will control the full amount of power reaching the lamp without the side effects of a step increase in current.

Техническая спецификация
pdfRS Pro Datasheet
Вес:
80гр
Встречающиеся стандарты:
EN 55015, EN 60598-1, EN 61000-3-2, EN 61347-1, EN 61347-2-2, EN 61547, EN61047, VDE 0710-T14
Вторичное номинальное напряжение:
12 В
Глубина:
21мм
Диммирование:
Dimming
Длина:
107мм
Защитные функции:
Over Voltage Protection, Overheating Protection, Overload Protection, Short Circuit Protection
Максимальная рабочая частота:
60Гц
Максимальная температура:
+55°C
Метод диммирования:
Trailing Edge
Минимальная рабочая частота:
50Гц
Минимальная температура:
-20°C
Минимальные требования к нагрузке:
20Вт
Мощность номинальная:
20 → 105Вт
Первичное номинальное напряжение:
230В перем. тока
Размеры:
107 x 35 x 21мм
Тип:
Электронное
Тип выводов:
Винт
Тип монтажа:
Threaded Slots
Ширина:
35мм
