92-93, Allen Bradley Reflector for Use with 42KC Series

PHOTOSWITCH® 42CS Stainless Steel

High Pressure, High Temperature Washdown and Cleaning Chemicals Resistant ideal for the for the food and beverage industry.

Innovative ferromagnetic teach for easy sensor programming
Smooth barrel design – free of threads and seams – minimizes the accumulation of undesired particles and allows for fast and thorough cleanup. Ideal for food and beverage industry
Extended temperature operating range
Robust 18 mm stainless steel 316L enclosure with laser etched markings
Two teach modes: standard and precision
Teach lockout feature prevents unauthorized users from changing the settings
Input to disable light source emitter
IP69K rated

Allen Bradley Reflector Kit For Use With 42KC Series, -25°C to +55°C Operating Temperature - 92-93

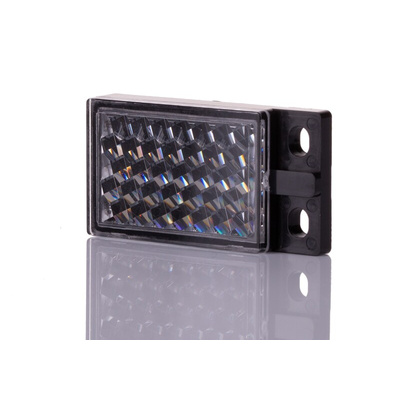

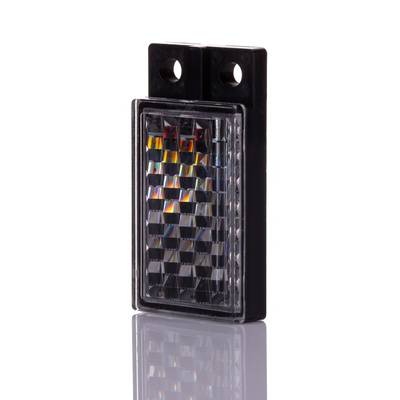

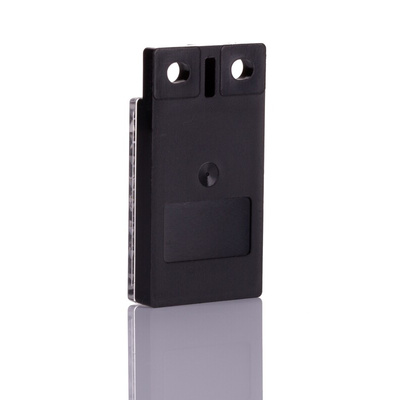

Use this reflector kit from Rockwell Automation's Allen Bradley range to complete the setup of your retro-reflective sensor. A retro-reflective sensor typically consists of a transmitter and receiver housed in the same unit, eliminating the need to wire separate components. It projects a beam of light from its transmitter, which bounces off a reflective module on the other side of the monitoring area before sending the signal back to the receiver. This unit consists of a physical reflector, reflective tape and a mounting bracket for complete assembly. For easy setup, it's designed for use with retro-reflective sensors from the 42KC series.

• Ambient temperature range between -25°C and +55°C to withstand demanding environments
• Comes with mounting screws and nuts for hassle-free assembly

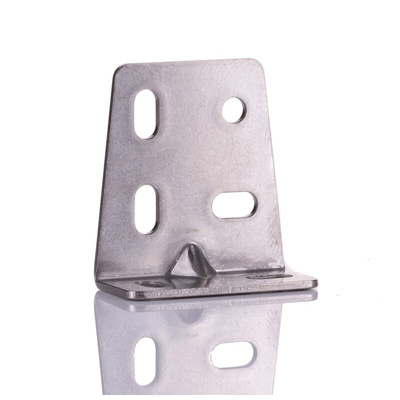

• Stainless steel mounting bracket is resistant to corrosion for durability

Standards and Certifications

• UL
• CE
• CSA

What's the difference between a physical reflector and a reflective tape?

As a physical reflector is rigid and stable, it's typically used in sensor applications that need a permanent reflective surface. A reflective tape is suitable for use in temporary installations where the reflective surface needs to be changed frequently.

Bracket, reflector 92-93 Drawing
