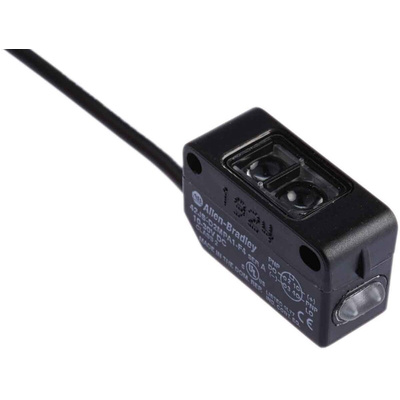

42JS-D2MPA1-F4, Allen Bradley Diffuse Photoelectric Sensor, Block Sensor, 3 → 800 mm Detection Range, Фотоэлектрический датчик

Bulletin 42JS VisiSight™

Small rectangular photoelectric sensors. Ideal for material handling, packaging and assembly applications.

Visible light source offered on all models for ease of alignment
Industry standard 25.4mm (1in) mounting hole spacing
ASIC design offers linear sensitivity adjustment, stability indication and excellent noise immunity
Compact sealed housing and cavity-free design minimize collection of dust and debris while allowing for easy sensor cleanup
360° visible LED status indicator

Allen Bradley Photoelectric Sensor, 1ms Response Time, 25mA Current Rating - 42JS-D2MPA1-F4

For precise object detection in your industrial equipment, choose this photoelectric sensor from Rockwell Automation's Allen Bradley range. It's a diffuse sensor with a transmitter and receiver contained in the same device. The sensor's transmitter sends out a continuous beam of light and the receiver sends a signal to your equipment's control unit when the light is reflected by an object. Consuming just 25mA of current, this unit is an energy-efficient choice for your industrial equipment. You'll find it used in automotive assembly lines, as well as in the process and packaging industries.

• Detection range of 3 to 800mm for long-range and short-range sensing
• Integrated 360° LED status indicator for easy monitoring from all angles

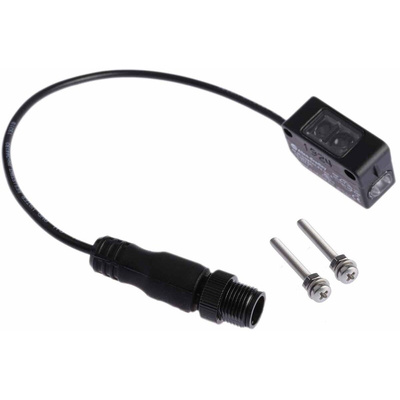

• Comes with mounting screws for easy installation
• Adjustment knob for quick and simple regulation of sensing range
• Can be operated both in bright and dark settings, making it a versatile tool

Standards and Certifications

• REACH
• RoHS

Is this sensor dustproof?

Yes, this sensor has an IP67 rating, which means that it's dustproof and can withstand immersion in up to 1m of water for 30 minutes. This makes it suitable for demanding and contaminated environments.
