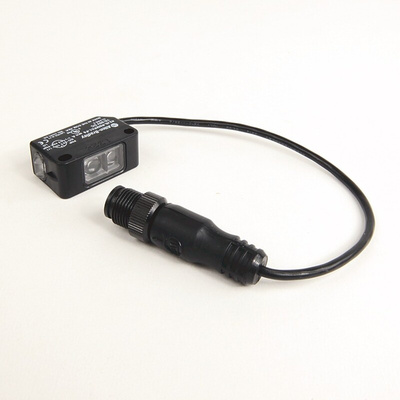

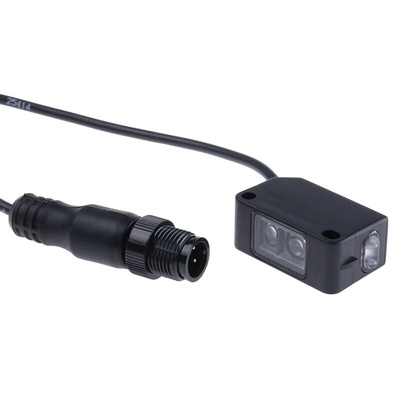

42JS-R9MPA1-F4, Allen Bradley Through Beam Photoelectric Sensor, Block Sensor, 10 m Detection Range, Фотоэлектрический датчик

Bulletin 42JS VisiSight™

Small rectangular photoelectric sensors. Ideal for material handling, packaging and assembly applications.

Visible light source offered on all models for ease of alignment
Industry standard 25.4mm (1in) mounting hole spacing
ASIC design offers linear sensitivity adjustment, stability indication and excellent noise immunity
Compact sealed housing and cavity-free design minimize collection of dust and debris while allowing for easy sensor cleanup
360° visible LED status indicator

Allen Bradley Photoelectric Sensor, 10m Detection Range, 1ms Response Time - 42JS-R9MPA1-F4

Use this photoelectric sensor from Rockwell Automation's Allen Bradley range to track the presence and position of objects in your industrial process. As it's a through-beam sensor, it works by projecting a beam of light from a transmitter to a receiver. When an object passes through the light, the receiver sends a signal to the output. The unit's casing is made from ABS material that's resistant to oils, solvents and chemicals, making it suitable for use in factory environments. This housing is tightly sealed to prevent the entry of dirt particles.

• Sending range of 10m for long-range detection
• Wide operating temperature range between -20°C and +60°C for safe use in challenging environments
• Response time of 1ms for quick detection
• Integrated short circuit and overload protection to prevent damage from current malfunction
• Resistant to shock and vibration to withstand demanding operations

Standards and Certifications

• cULus
• CE

How do I adjust the sensitivity level of this sensor?

This photoelectric sensor has an easy-to-use knob that lets you adjust the sensitivity range through a minimum and maximum level.
