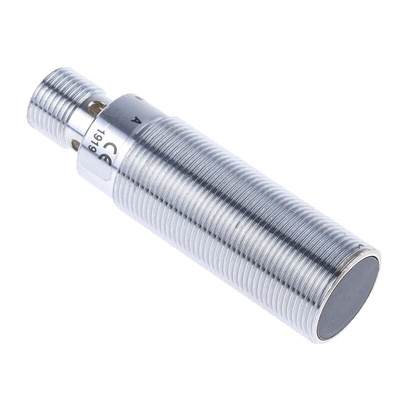

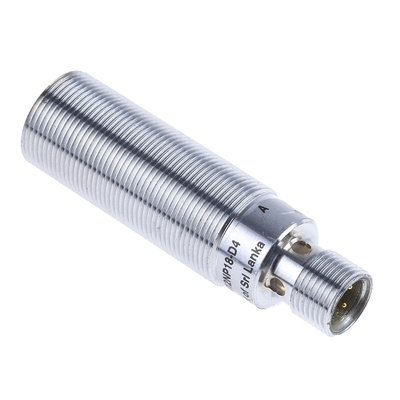

872C-M12NP18-D4, Allen Bradley Inductive Barrel-Style Proximity Sensor, M18 x 1, 12 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

3-Wire DC Weld Field Immune

3-wire operation
4-pin micro quick-disconnect
Weld field immunity
Weld-slag resistant PTFE coated brass barrel and face
Equal sensing for all metals
Normally open output
Reverse polarity, short circuit, overload, false pulse and transient noise protection

Allen Bradley Inductive Proximity Sensor, Barrel Body Style, PNP Output - 872C-M12NP18-D4

Use this inductive proximity sensor from Rockwell Automation's Allen Bradley range in your machine for non-contact detection of objects within its vicinity. It's designed to detect objects within a 12mm range. This long sensing range allows for the sensor to be mounted further away from the target object, avoiding damage from impact. It's equipped with a PNP (positive negative positive) output that's easy for technicians to troubleshoot. This also serves to protect the sensor against hazardous situations like short-circuiting and overload.

Features and Benefits

• IP67 (ingress protection) rating certifying that this component is dust-tight and water-resistant
• Flush mounting style protects the face of the sensor from damage
• Chrome-plated brass housing for durability and corrosion resistance
• 4-pin micro quick disconnect makes replacing or moving the sensor easy and safe
• Maximum switching frequency of up to 500Hz, ensuring high-speed response times

Standards and Certifications

• BS EN 61340-5-1:2007 (Electrostatic Control Standards)
• ANSI/ESD S20.20:2014 (Electrostatic Control Standards)
• UL (Underwriters' Laboratories)
• CE (Conformité Européene)

What's the advantage of using this inductive proximity sensor?

This proximity sensor offers equal sensing ranges for all ferrous metals, eliminating the need to adjust to fit different target objects.

Datasheet
