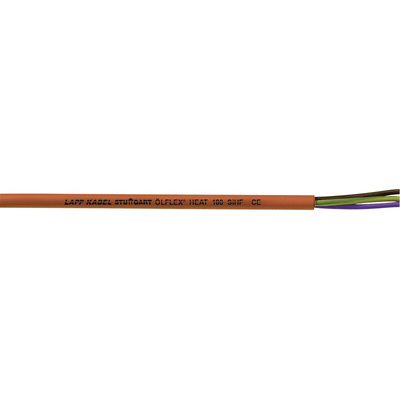

0046006, Lapp ÖLFLEX HEAT 180 SiHF Control Cable, 7 Cores, 0.75 mm², YY, Unscreened, 50m, Red Silicone Sheath, 18 AWG, Кабель

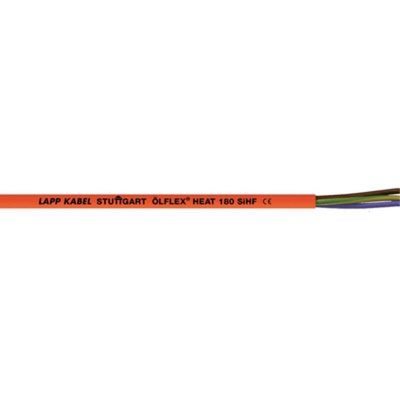

Olflex® Heat 180 SiHF Silicone Cable

From Lapp, the Olflex Heat 180 SiHF is a power and control cable designed for applications where a wide operating temperature is required. This cable features a silicon based core insulation and sheath, and can operate in areas with high ambient temperatures where conventional cables will embrittle after a short time.

This high temperature cable is also halogen-free, and emits no corrosive gases while burning, meaning it is ideal for conditions where the protection of human life and property is paramount.

The Olflex silicon power cable is a versatile solution to cable management in challenging environments.

Features and Benefits

• Flame retardant to IEC 60332-1-2
• Halogen free to IEC 60754-1
• Reduced smoke density
• Operating temperature range of -50 °C to +180 °C
• Resistant against a multitude of oils, alcohols, vegetable and animal fats and chemical media

Applications

Though the Olflex Heat 180 SiHF cable is suitable for multiple purposes, its increased temperature resistance means it is ideal for applications such as;

• Steel Works
• Industrial Furnaces
• Bakery Equipment
• Solarium Construction
• Lighting

Accessories

Lapp Olflex power and control cables should be used with accessories that match their capabilities, and as such Lapp provide a range of reliable and easy-to-install cable glands, such as the Skintop SHV-M FKM Series.

• 664-4410 is an IP68 M12 Skintop Cable Gland Kit for 3.8 to 4.8 mm Cable Diameters
• 664-4417 is an IP68 M16 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4426 is an IP68 M20 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4429 is an IP68 M20 Skintop Cable Gland Kit for 6.8 to 8.8 mm Cable Diameters
• 664-4423 is an IP68 M20 Skintop Cable Gland Kit for 8.5 to 10.8 mm Cable Diameters

LAPP ÖLFLEX HEAT 180 SiHF Series Control Cable, Unscreened, Tinned Copper Conductor - 0046006

This LAPP control cable, with silicone Insulation and tinned copper conductor is designed for demanding applications within automation, electronics, electrical, and mechanical industries. With a temperature range of -50°C to +180°C, this flame retardant and halogen-free cable is perfect for areas with high ambient temperatures.

Features & Benefits

• Features a tinned-copper conductor for high conductivity and durability
• Silicone insulation provides excellent resistance to extreme temperatures
• Flame-retardant and halogen-free, ensuring safety in various applications
• ÖLFLEX HEAT 180 SiHF series offers reliable performance in critical environments

Applications

• Ideal for use in steel, ceramic, and iron works
• Suitable for bakery equipment, industrial furnaces, and electric motor industry
• Perfect for sauna/solarium construction and heating elements
• Used extensively in lighting, ventilator engineering, and air-conditioning technology

Can it withstand high temperatures in industrial settings?

This control cable is designed to operate in temperatures ranging from -50°C to +180°C, making it suitable for industrial applications.

Will it provide reliable performance in areas with high ambient temperatures?

Yes, the ÖLFLEX heat 180 SiHF cable series is specifically engineered for areas where conventional cables may embrittle due to high temperatures.

Is this cable safe for use in environments requiring flame-retardant properties?

Yes, the Lapp control cable with silicone insulation and tinned copper conductor is flame-retardant and halogen-free, ensuring safety in critical applications.
