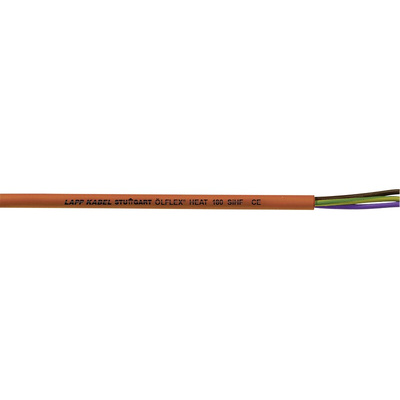

0046008, Lapp 3 Core Power Cable, 1 mm², 50m, Brown/Red Silicone Sheath, Flexible Multicore, 500 V, Кабель

Olflex® Heat 180 SiHF Silicone Cable

From Lapp, the Olflex Heat 180 SiHF is a power and control cable designed for applications where a wide operating temperature is required. This cable features a silicon based core insulation and sheath, and can operate in areas with high ambient temperatures where conventional cables will embrittle after a short time.

This high temperature cable is also halogen-free, and emits no corrosive gases while burning, meaning it is ideal for conditions where the protection of human life and property is paramount.

The Olflex silicon power cable is a versatile solution to cable management in challenging environments.

Features and Benefits

• Flame retardant to IEC 60332-1-2
• Halogen free to IEC 60754-1
• Reduced smoke density
• Operating temperature range of -50 °C to +180 °C
• Resistant against a multitude of oils, alcohols, vegetable and animal fats and chemical media

Applications

Though the Olflex Heat 180 SiHF cable is suitable for multiple purposes, its increased temperature resistance means it is ideal for applications such as;

• Steel Works
• Industrial Furnaces
• Bakery Equipment
• Solarium Construction
• Lighting

Accessories

Lapp Olflex power and control cables should be used with accessories that match their capabilities, and as such Lapp provide a range of reliable and easy-to-install cable glands, such as the Skintop SHV-M FKM Series.

• 664-4410 is an IP68 M12 Skintop Cable Gland Kit for 3.8 to 4.8 mm Cable Diameters
• 664-4417 is an IP68 M16 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4426 is an IP68 M20 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4429 is an IP68 M20 Skintop Cable Gland Kit for 6.8 to 8.8 mm Cable Diameters
• 664-4423 is an IP68 M20 Skintop Cable Gland Kit for 8.5 to 10.8 mm Cable Diameters

LAPP Power Cable, 3 Cores, Tinned Copper Conductor Material - ÖLFLEX Series - 0046008

Juice up your appliance with this power cable from LAPP. It links your device to an energy source to keep your component running strong. Thanks to its three cores, you get multi-circuit control, so that's less wiring for your setup. The cable is built for safe use in harsh conditions, thanks to its wide operating temperature range between -25°C and +180°C. It comes unterminated on both ends, so you can choose a connector that matches your design needs.

Features & Benefits

• Cable length of 50m provides enough reach for large-scale projects
• Halogen-free construction to prevent the emission of toxic fumes in the event of a fire

Applications

• HVAC systems
• Industrial furnaces
• Power generation plants

Why are this cable's conductors twisted?

Twisting the unit's cores against each other helps to prevent EMI and ensures you get noise-free signal transmission.
