10073599-006LF, Amphenol Communications Solutions, Minitek Pwr Female Connector Housing, 2mm Pitch, 6 Way, 2 Row, Корпус разъема

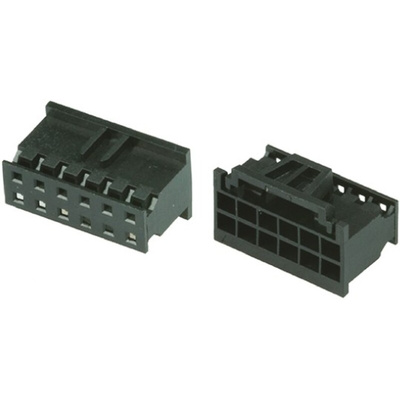

2.00 mm Amphenol FCI Minitek™ CTW Active Latch Crimp Housing

2.00 mm Amphenol FCI Minitek™ CTW active latch crimp housing are a housing for crimp-to-wire systems, ensuring a secure mechanical connection in applications with high extraction forces or vibration, attached and unattached to PCB boards with an audible click, constructed of high temperature black thermoplastic.

Mating cycles: 50
Operating temperature: -55°C → +125°C

Note

For suitable crimp see stock no. 714-2404
From 02/04/2012 a design change in the housing will remove the necessity to perform the pre-opening operation.

Approvals

UL and CSA

2.0mm Amphenol FCI Basics+ Connectors, Headers and Minitek™

2.0mm Amphenol FCI Basics+ Connectors, Headers and Minitek™ Basics+ Connectors, Headers and Minitek™ is a 2 mm system range offering up to 38% space saving compared to 2.54 mm connector systems.

Fully intermateable across the Minitek™ Headers and Connectors range

Crimp Housing Latched Minitek 6 Way Data Sheet

Crimp Housing Latched Minitek Drawing
