10078991-G22-08ULF, Amphenol Communications Solutions Minitek Series Straight Through Hole PCB Header, 8 Contact(s), 2.0mm Pitch, 2 Row(s),

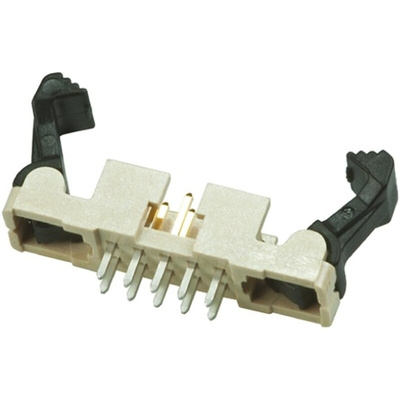

2.00 mm Amphenol FCI Minitek™ Through Hole (TMT) Vertical Shrouded Header Short Eject

2.00 mm Amphenol FCI Minitek™ through hole vertical shrouded header cable-to-board connector securely latches the receptacle in place and also enables simple ejection. Four walled shielding protects pins in unmated condition.To prevent mismating, the eject latch header is equipped with a polarisation key.

Flamability rating: UL 94 V-O
Housing colour: Cream, Black Latches
Operating temperature: -40°C → +125°C
Contact plating: 0.76μm (30μin) selective Gold
Insulation resistance 1000 MΩ
Dielectric withstand voltage 650V

2.0mm Amphenol FCI Basics+ Connectors, Headers and Minitek™

2.0mm Amphenol FCI Basics+ Connectors, Headers and Minitek™ Basics+ Connectors, Headers and Minitek™ is a 2 mm system range offering up to 38% space saving compared to 2.54 mm connector systems.

Fully intermateable across the Minitek™ Headers and Connectors range

TMT Header Short Latch Minitek Drawing
